Introducing the Easy Rail Aluminum Joist System

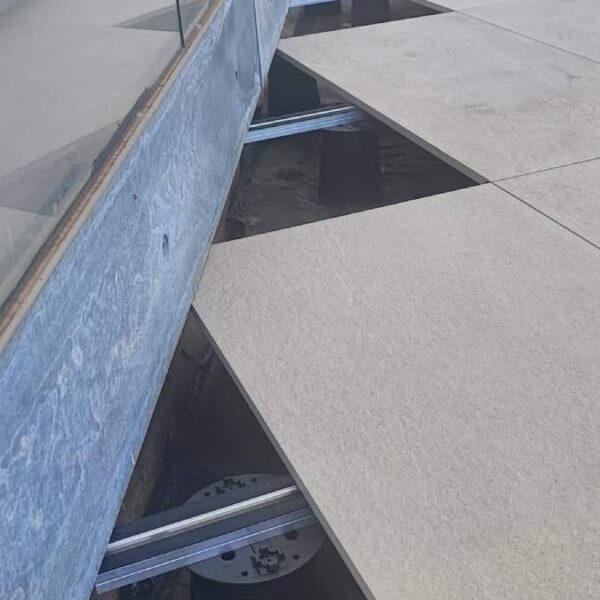

The Easy Rail Aluminum Joist System by Buzon is an innovative, high-performance substructure designed for pedestal paver applications. Engineered for speed, strength, and stability, this system simplifies installation while supporting large-format pavers and planks. Ideal for rooftop decks, terraces, and other elevated outdoor spaces, Easy Rail offers a full range of accessories to meet diverse project needs.

Why Choose the Easy Rail Aluminum Joist System?

This aluminum joist system is thoughtfully engineered with numerous design enhancements that improve stability, accelerate installation, and enhance the underfoot experience for the people who use the space.

Faster. Stronger. Smarter. Introducing Buzon E-BRS.

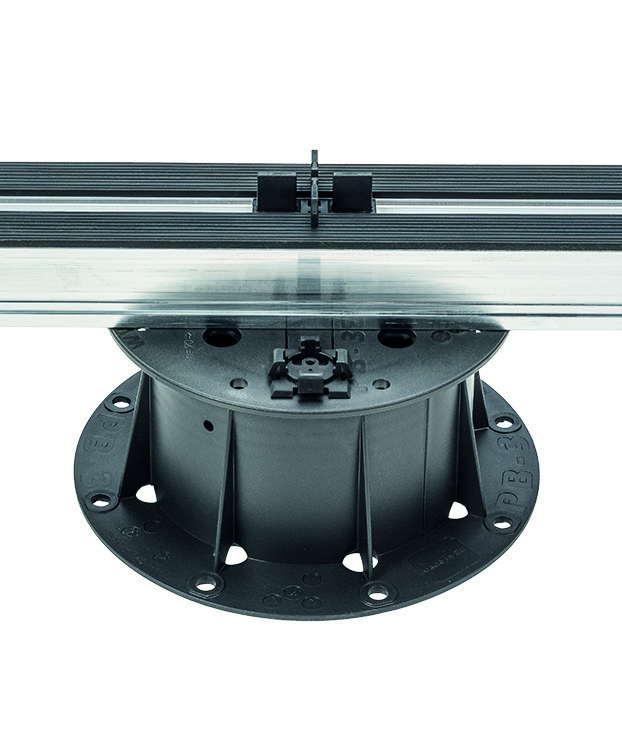

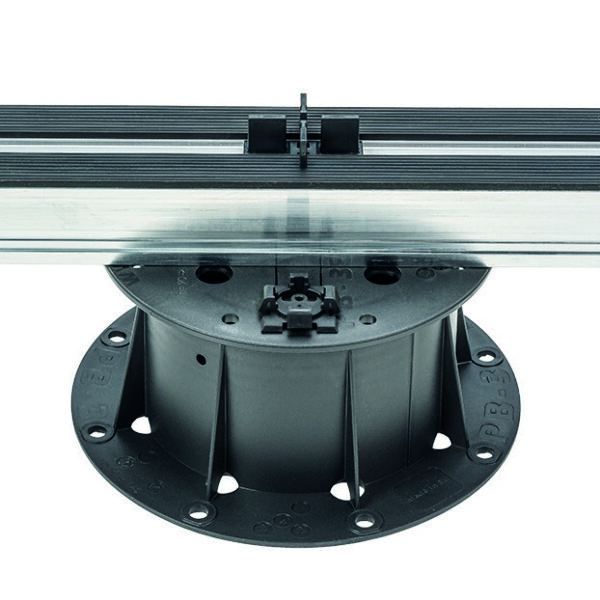

The E-BRS Easy Rail System transforms how you build raised outdoor surfaces. When paired with Buzon PB-Series pedestals, it simplifies the installation of large-format and elongated pavers, delivering faster builds, stronger support, and smarter water management.

  • High-strength aluminum joists
  • Factory-fitted, shock-absorbing seals
  • Integrated drainage holes
  • Overhang capabilities for clean, finished edges
  • Available in natural aluminum or anodized black
  • Two thickness options to fit project needs

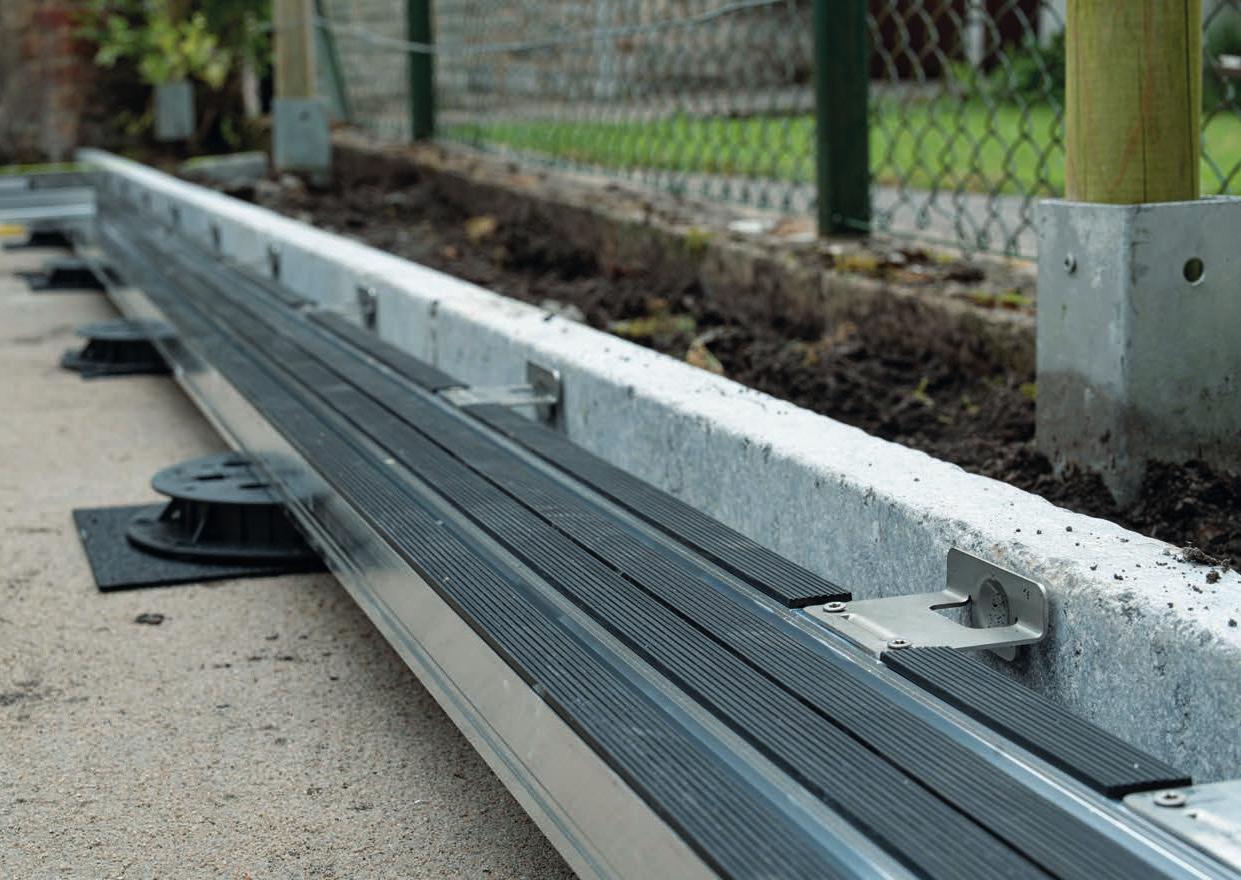

Hero Image Showing EPDM Cutaway for U-WALL-PP accessory on E-BRS Easy Rail Aluminum Joist Videos page.

See the E-BRS System in Action

Watch 9 short videos that show how E-BRS accessories integrate with the Easy Rail Aluminum Joist system, from start to finish.

  • Installation clarity
  • System compatibility
  • Accessory highlights
Watch Now
View the E-BRS Catalog

Build Better with the E-BRS Easy Rail System.

Easy Rail Features at a Glance:

  • Two Joist Sizes: 1 5/8″ or 1 1/16″ (41mm or 27mm) joists to suit various pedestal spacing needs
  • Two Finishes: Choose natural aluminum or anodized aluminum for enhanced corrosion resistance—ideal near pools, coastal areas, and concrete

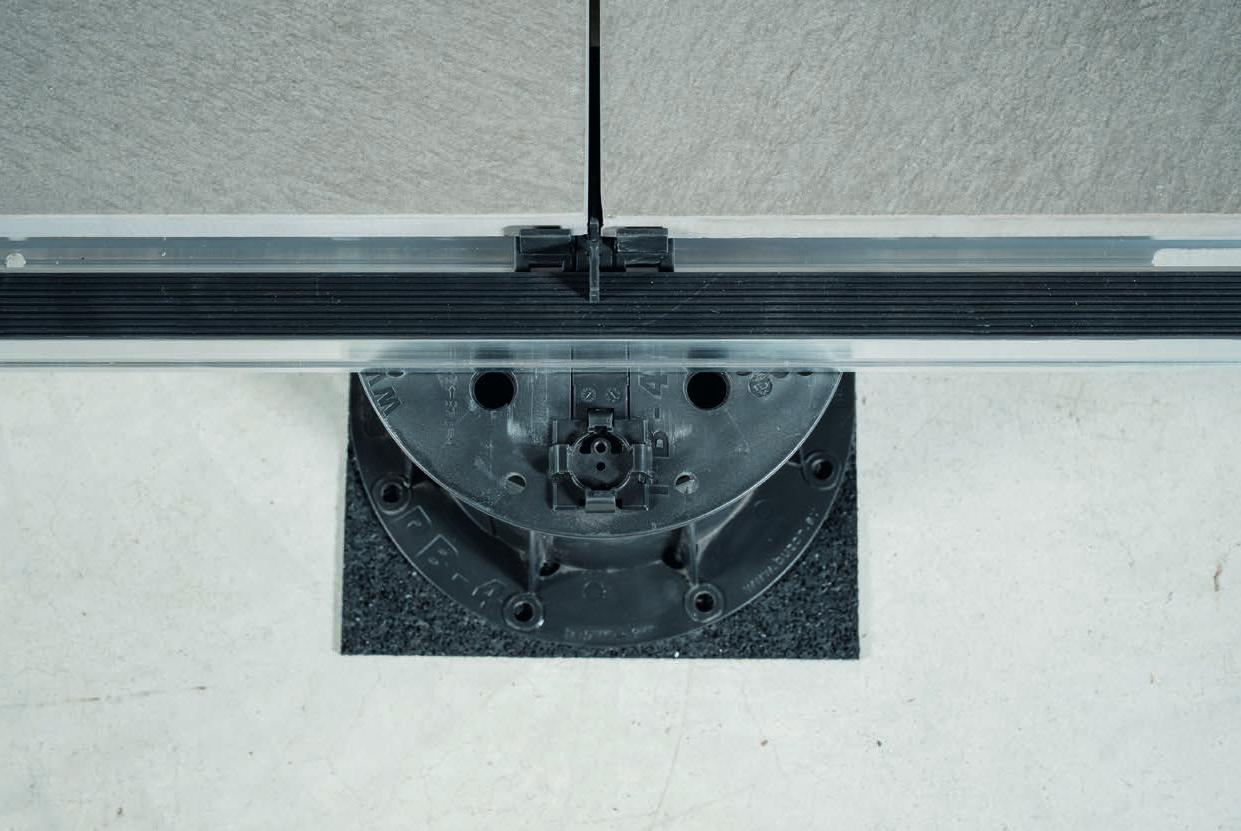

  • Factory-Installed EPDM Shims: Shock-absorbing for noise reduction and impact resistance

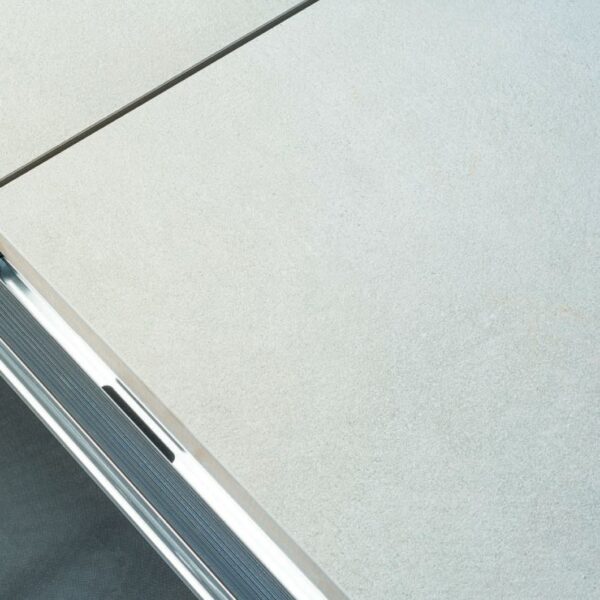

  • Efficient Drainage: Pre-punched holes in the joists allow rapid water runoff

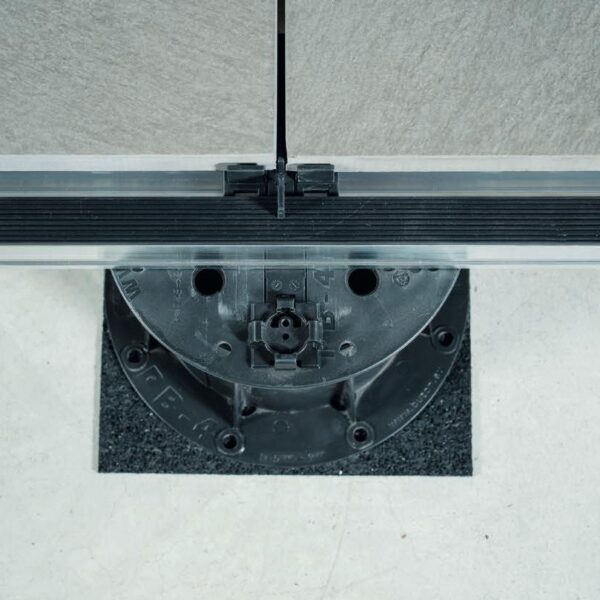

  • Position Markers: Integrated guides on each pedestal eliminate guesswork during installation
  • Optimized for Stability: Especially beneficial for large-format pavers

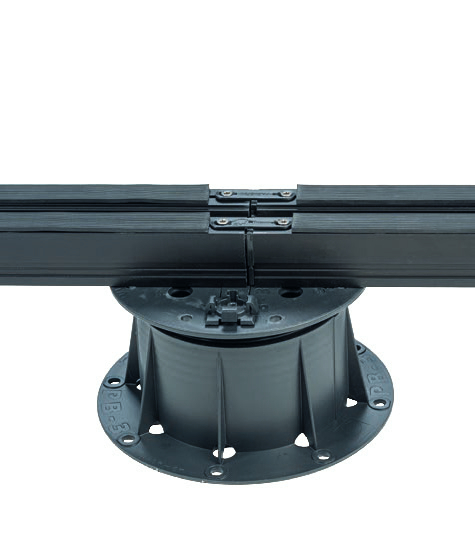

  • Accessory Support: Tabs, connectors, edge clips, and more available for full system integration

What happens when Buzon E-BRS meets HDG Building Materials?
Endless Design Possibilities

Designed for Large- and Small-Format Pavers and Planks

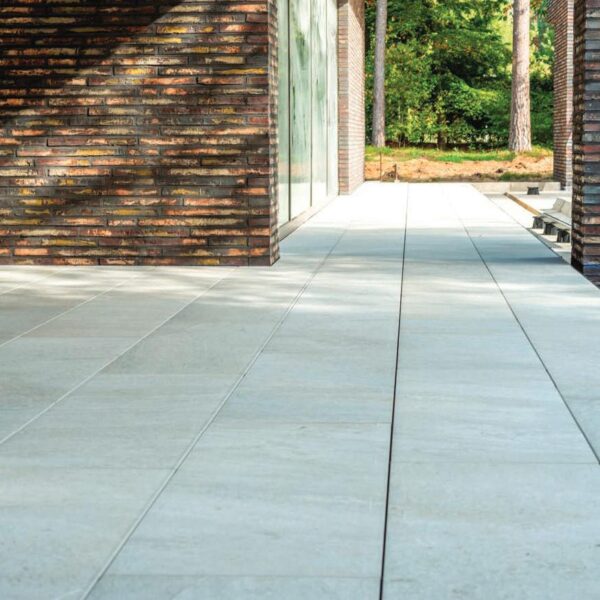

The Buzon E-BRS Easy Rail System provides robust support and structural integrity for oversized and small-format porcelain, stone, and concrete pavers. Use E-BRS to reduce pedestal count, streamline layouts, and unlock new design options with ultra-thin profiles or non-standard sizes.

Custom Paver Sizes with HDG Stone:

Want a unique paver size like 8.75″ x 42″? HDG Stone can fabricate custom dimensions to match your vision?

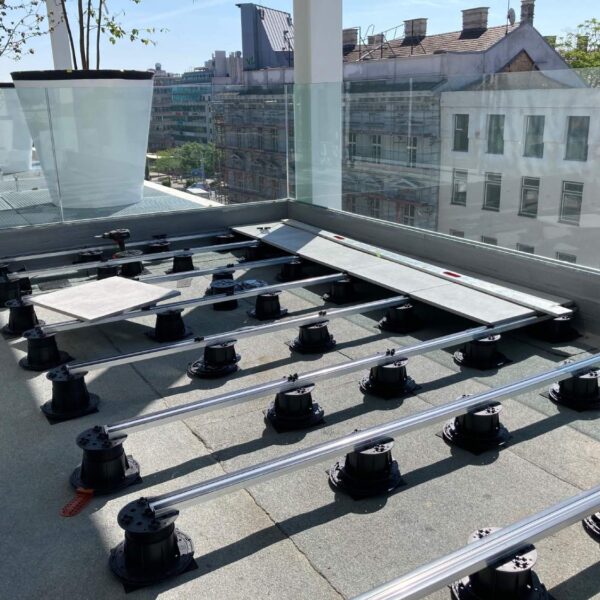

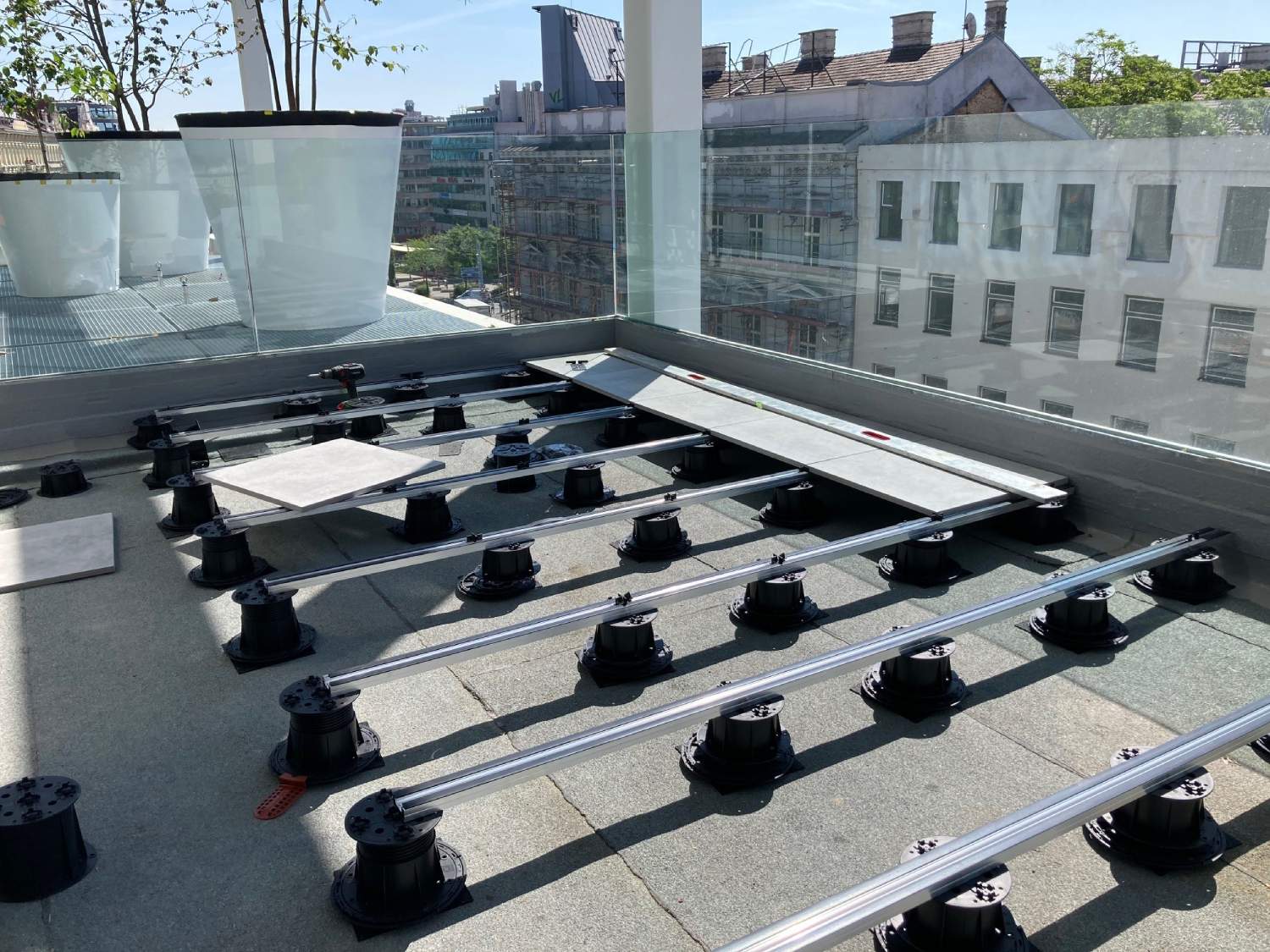

Rooftop deck with porcelain paver planks on Buzon Easy Rail System with spacer tabs and integrated EPDM shims.

Joist Spacing and Paver Pattern Guidelines for Small-Format Pavers

Case 1: 10″ x 20″

  • Direct-set requires a dense 10″ x 20″ grid with 4 pedestals per paver (≈50 in² per pedestal)
  • With E-BRS, pedestals are spaced 31 ½″ o.c., creating a 20″ x 31 ½″ support grid (630 in²)
  • Each paver is still supported at four points via joists, but with far fewer pedestals
  • Result: ~70% savings in pedestal count and labor

Case 2: 6″ x 12″

  • Direct pedestal-set is not viable, 6″ is too tight, pedestal bases would overlap
  • With E-BRS, joists at 12″ and pedestals 31 ½″ o.c create a 12″ x 31 ½″ support grid (378 in²)
  • Efficient and practical for dense, small-format layouts

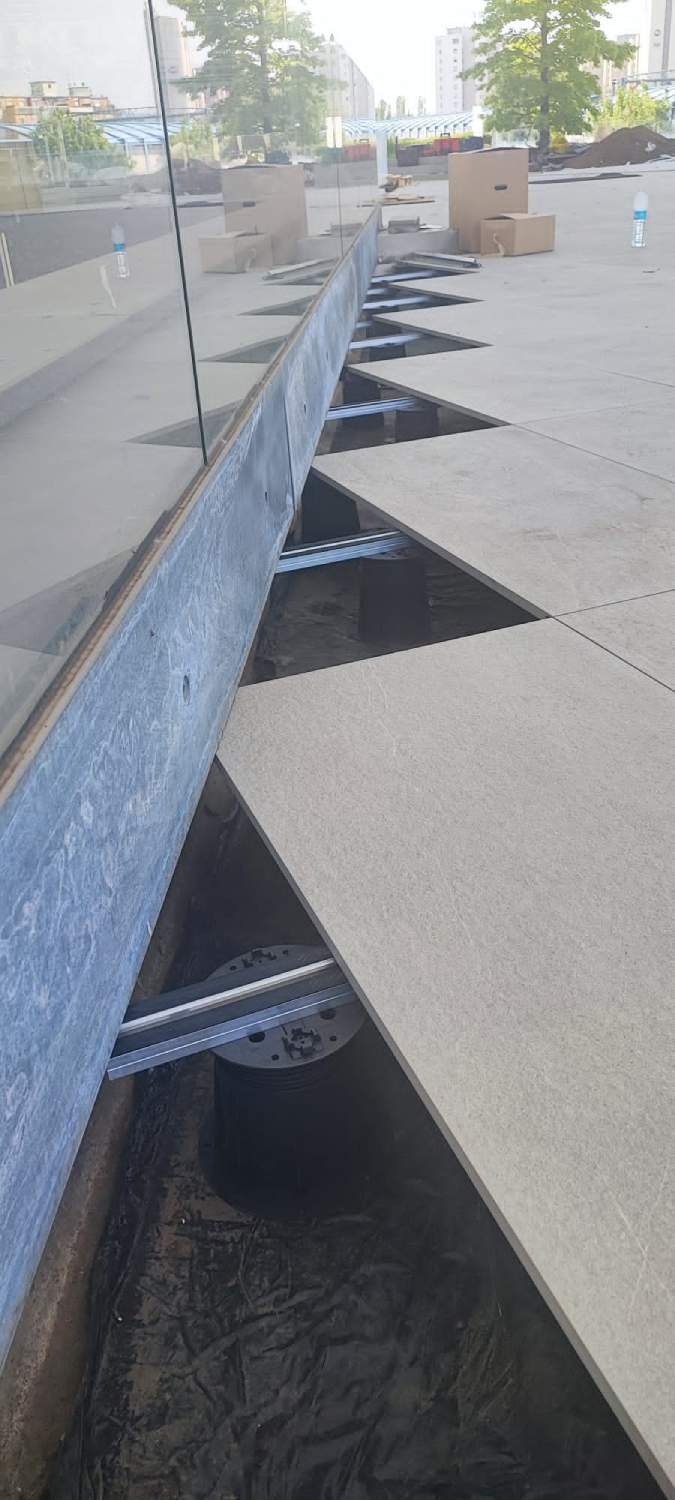

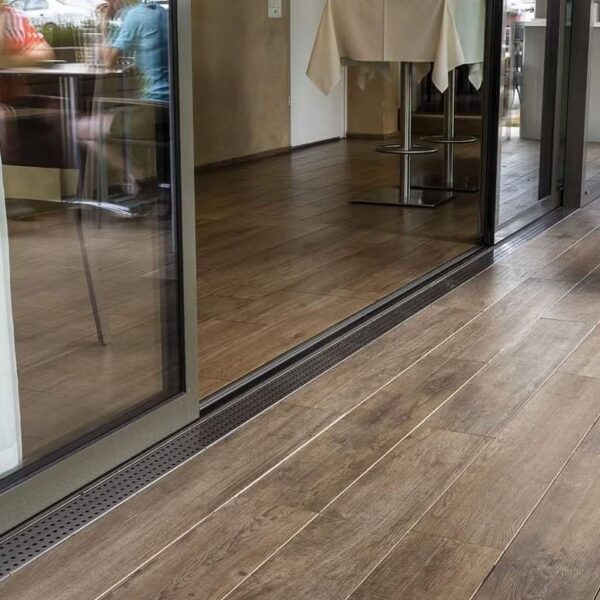

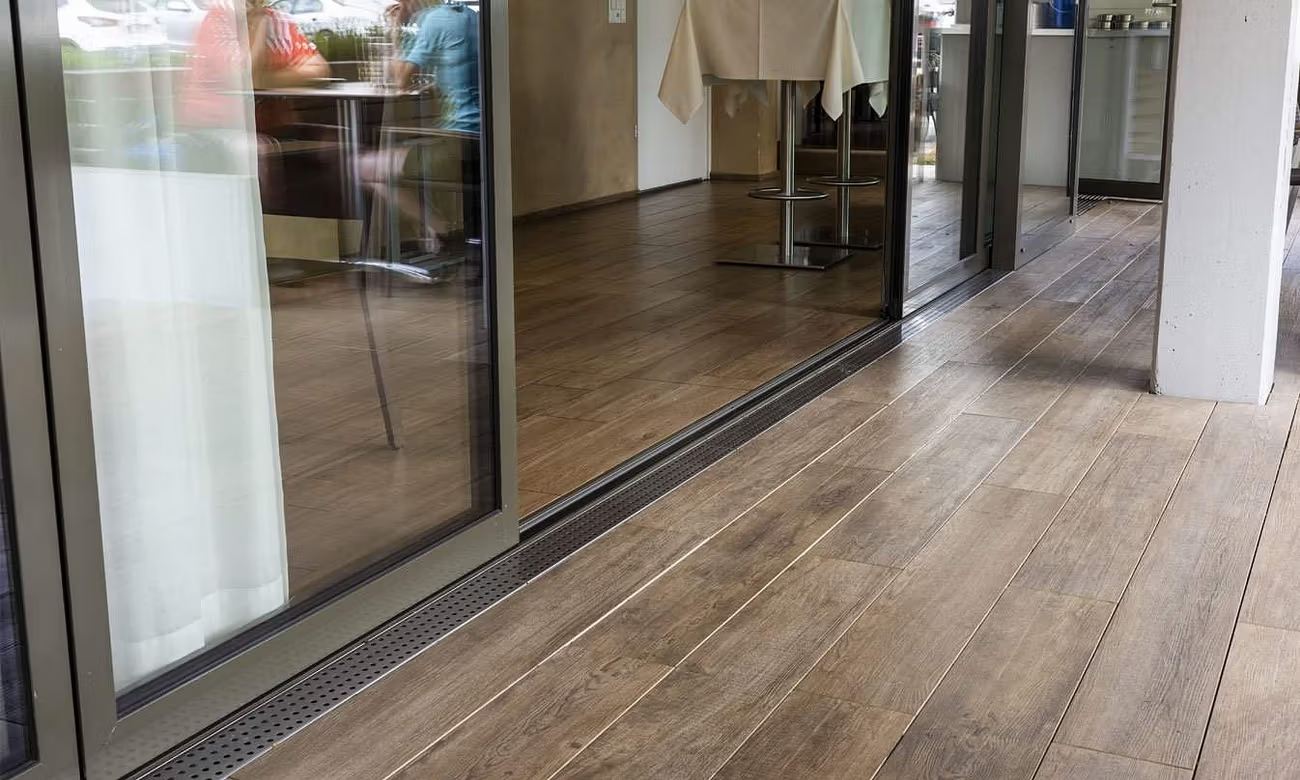

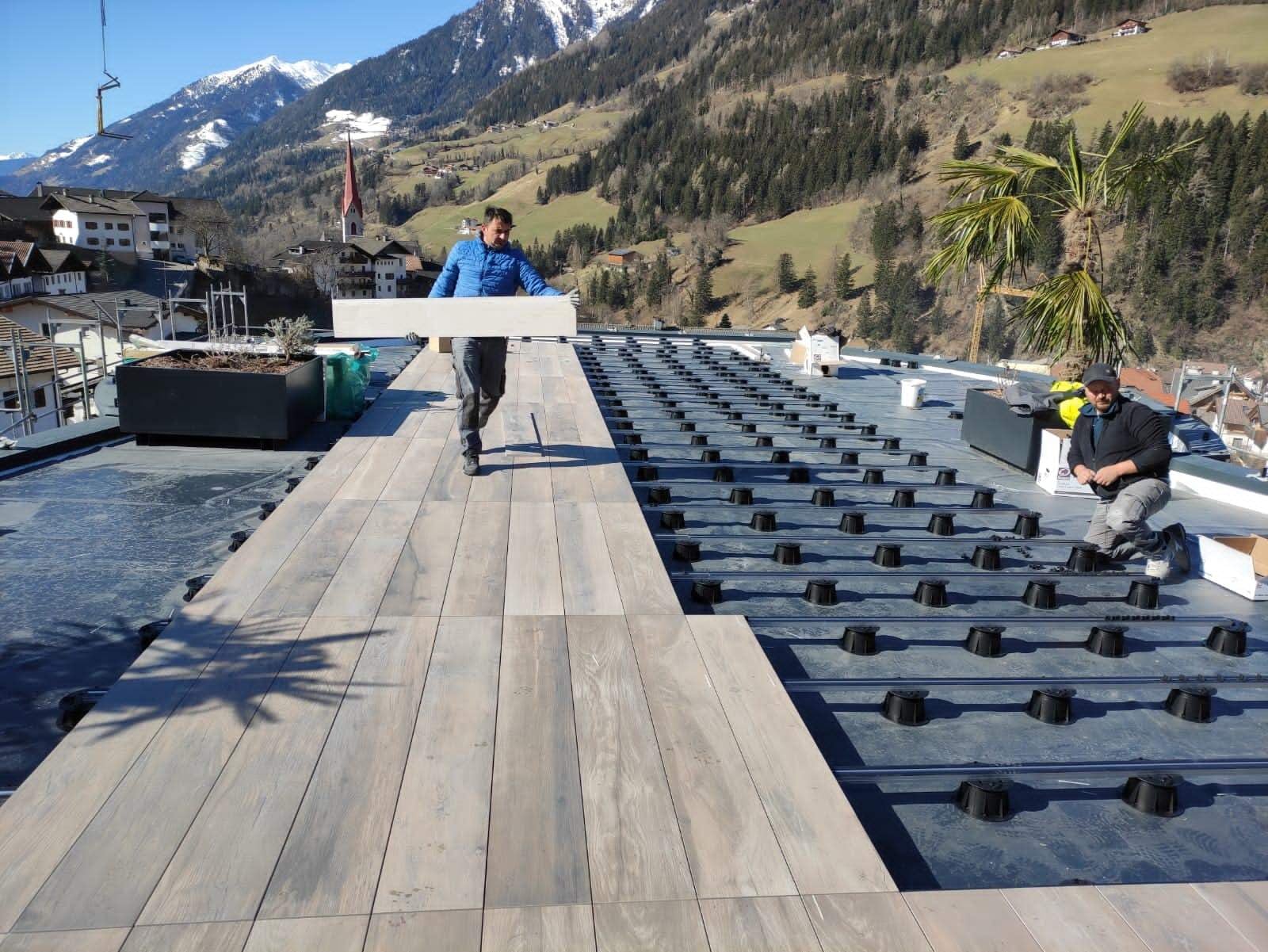

Buzon E-BRS Easy Rail System with Large Format Wood Look Porcelain Planks.

Joist Spacing and Paver Pattern Guidelines for Large-Format Pavers

Scenario 1:

  • Use 8.75″ x 42″ planks
  • Set E-BRS joists 21″ on center
  • Layout options: Stacked bond or 50% offset running bond
  • Efficient and modern

Scenario 2:

  • Upsize to 8.75″ x 45″ planks
  • Set joists 15″ on center
  • Enables a 33% offset running bond pattern
  • Tighter layout and more visual interest

Scenario 3:

  • Go bold with 60″ long pavers
  • Set joists 20″ on center
  • Supports a 33% offset running bond layout

Scenario 4:

  • Use dense natural stone pavers like granite, basalt, or limestone (e.g., 10″ x 50″)
  • Set joists 25″ on center
  • Most efficient in materials and labor
  • Layouts: Stacked bond or 50% offset

Easy Rail Aluminum Joist Accessories

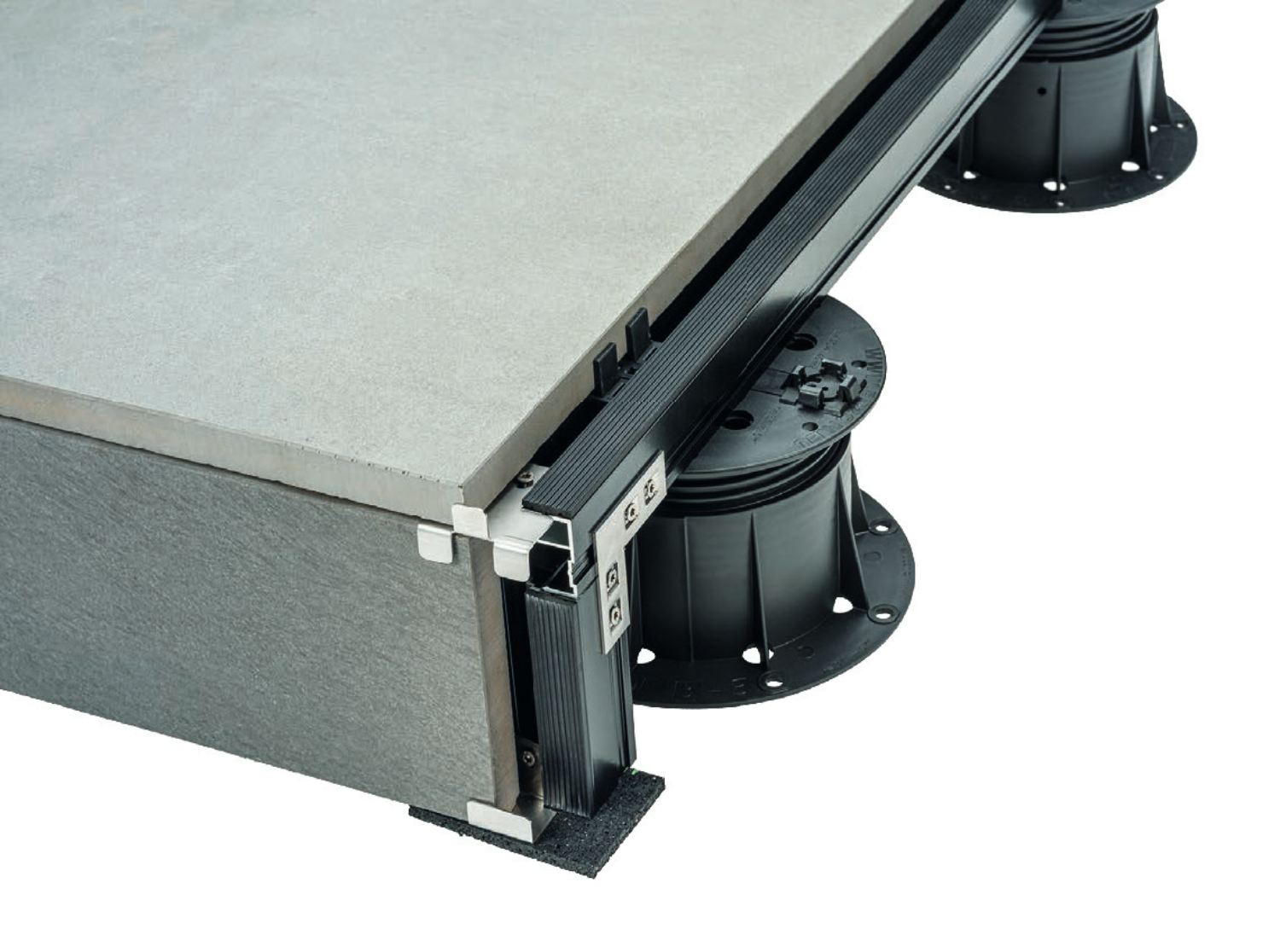

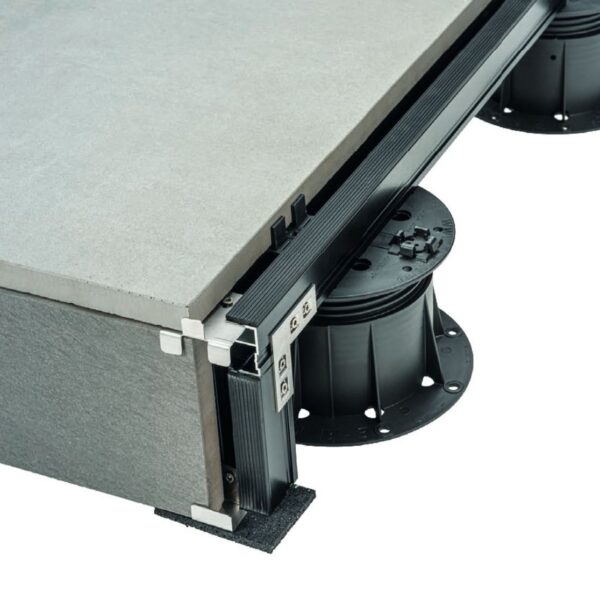

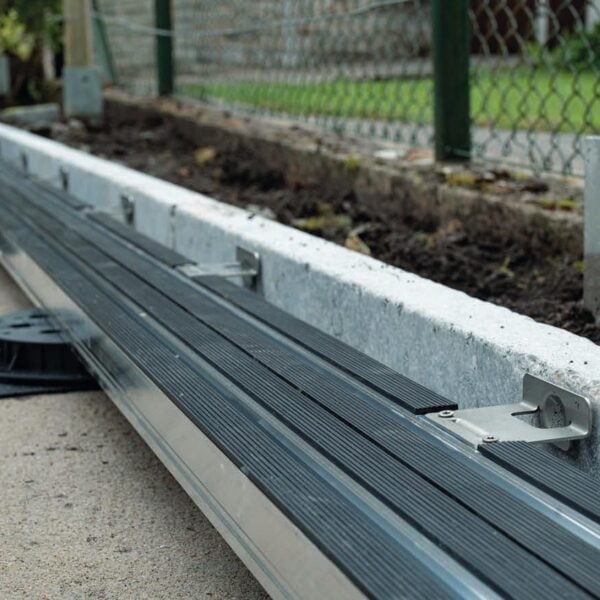

While the E-BRS system delivers lateral stability by locking pedestals and pavers together along the rails, perimeter containment is still required. HDG offers a full range of E-BRS edge accessories including:

  • Edge stops
  • Perimeter clips
  • Specialized connectors and shims

These Buzon E-BRS Easy Rail accessories ensure clean, professional finishes and long-term performance. View the E-BRS catalog or visit E-BRS resources to explore these accessories in more detail.

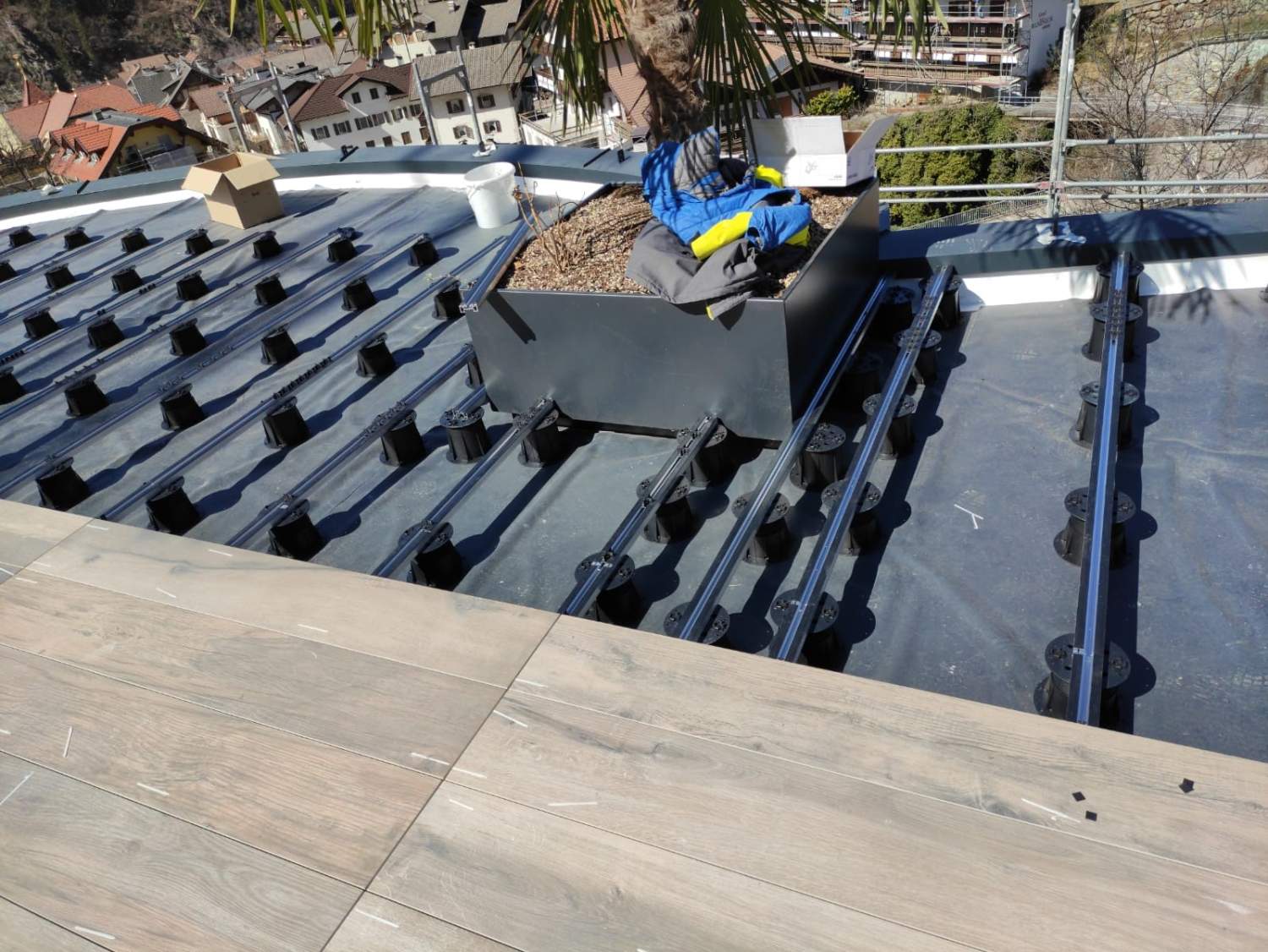

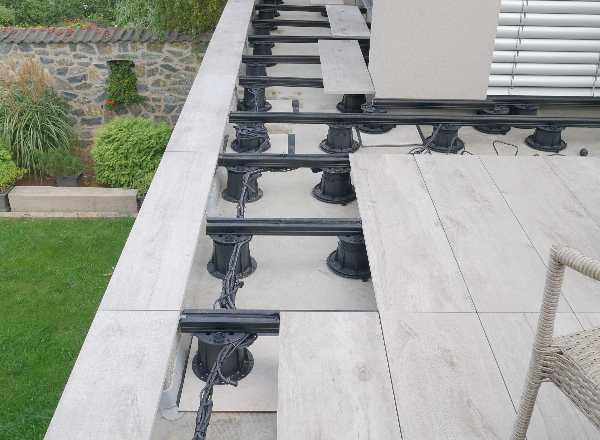

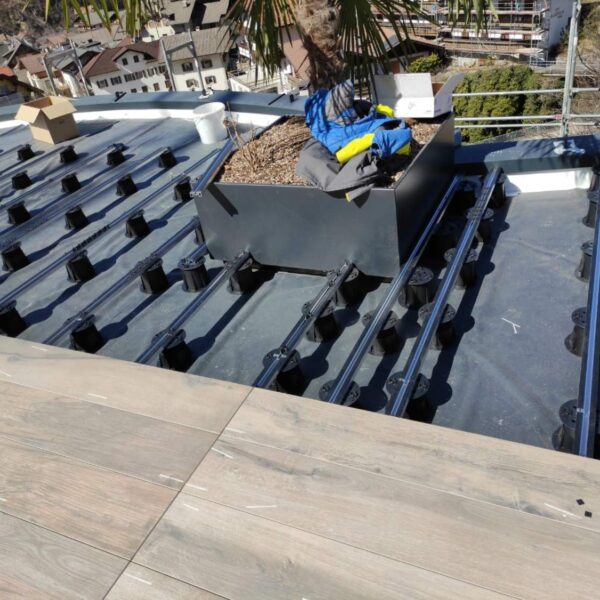

Buzon Pedestals with U-BRS-Aluminum Joist System and Porcelain Paver Planks.

Collaborate with HDG on Your Project

Smarter design with the Buzon Pedestals E-BRS System can reduce materials and installation labor costs by up to 50%. Involve HDG early in your project planning to get expert guidance from concept to completion.

Contact us today to unlock new efficiencies and design possibilities.
