Applications:

Perfect for residential, municipal and commercial applications, including:

  • Patios
  • Plazas
  • Pool decks

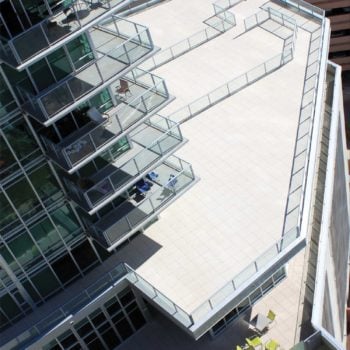

  • Roof Decks
  • Sidewalks
  • Terraces
  • Walkways
  • Pedestrian areas

SW Series Overview

Grand in size and style, the SW Series of concrete pavers is tailored to suit the purposes and creative aesthetics of any commercial and residential development.  They can be sand-set or pedestal-set depending on your project’s needs. SW Series concrete pavers are available in a palette of distinctive colors and a range of luxurious textures to empower designers to create bold, individual statements.

Details:

  • Three Sizes Available:
    • 12″ x 12″ x 2″
    • 12″ x 24″ x 2″
    • 24″ x 24″ x 2″
  • Select from 7 colors
  • Choose from 2 finishes
    • A – Sandblast Contempo
    • B – HS Venetian

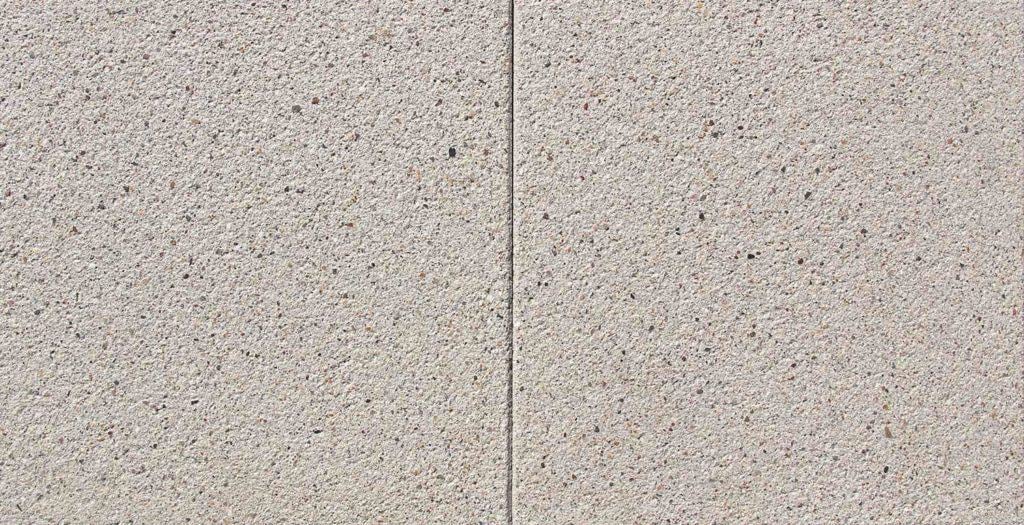

  • Gray Mist and Bentley White in the Venetian finish have an average of 29 and 48 solar reflectance (SRI). Learn more about Solar Reflectance Index.

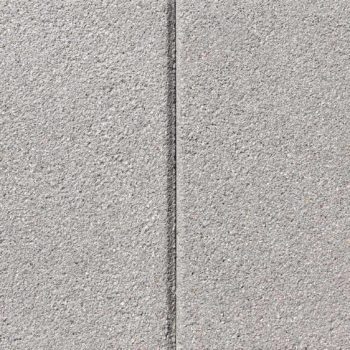

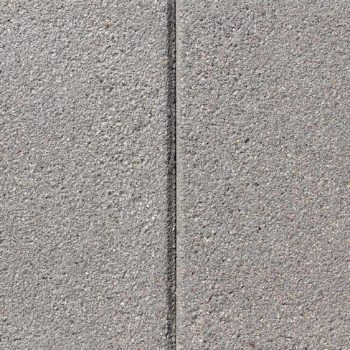

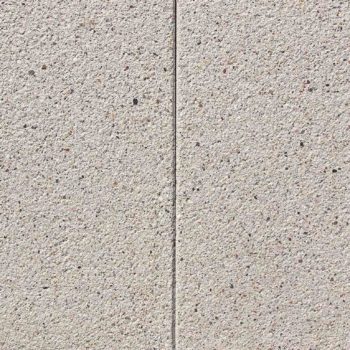

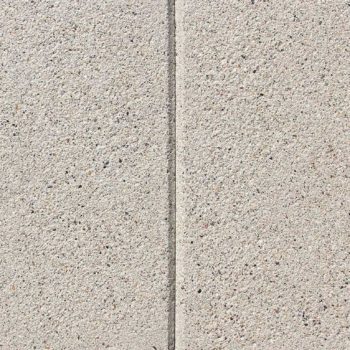

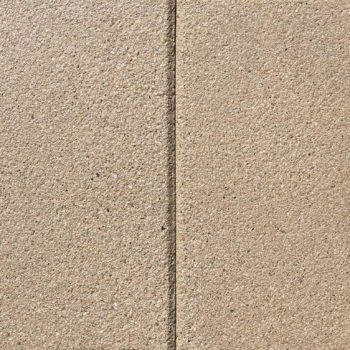

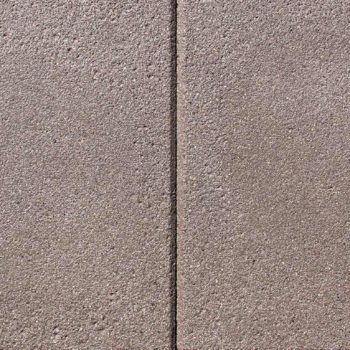

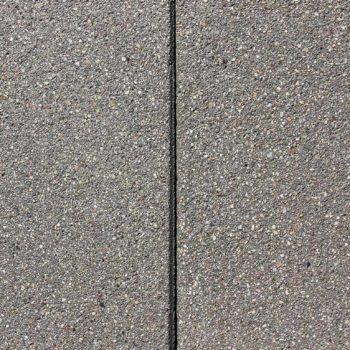

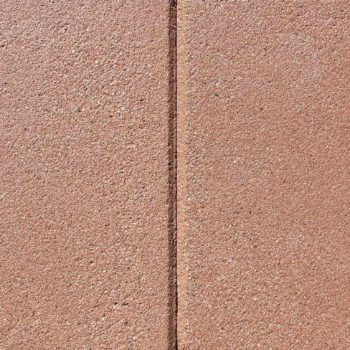

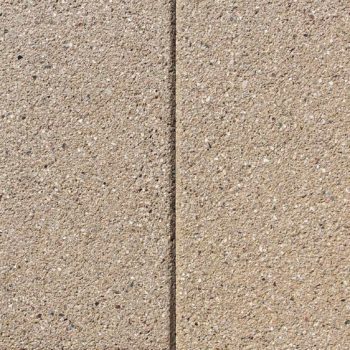

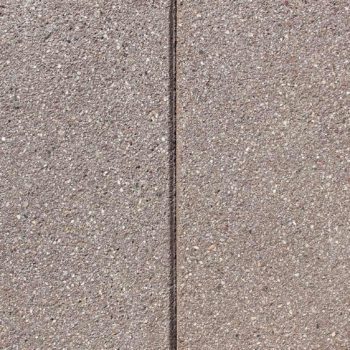

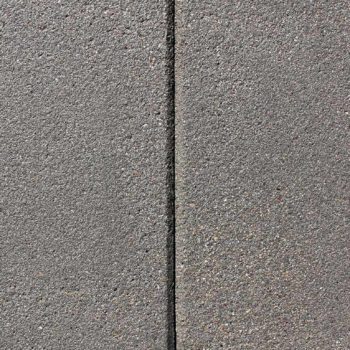

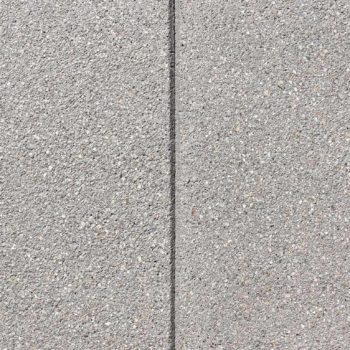

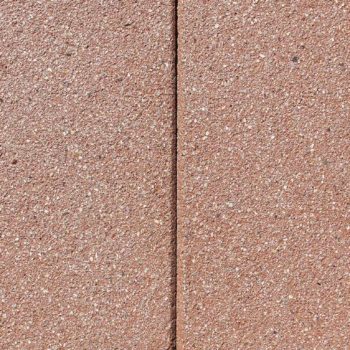

SW Series Standard Colors

Color photographs show the general appearance of color and texture ranges. We are happy to provide actual samples to help you make a final color and texture product selection.

SW Series Finishes

HDG SW Series Concrete Paver - Rouge Color - Contempo Finish

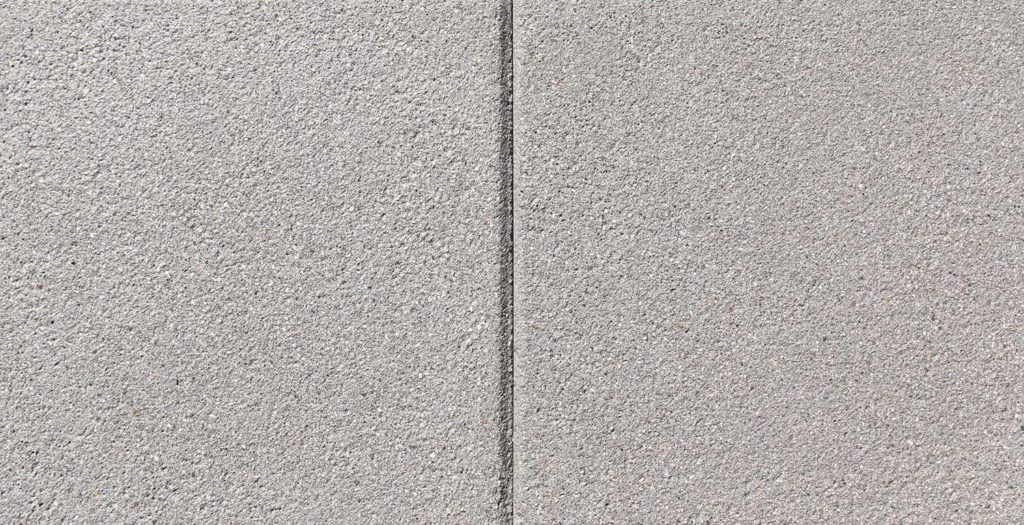

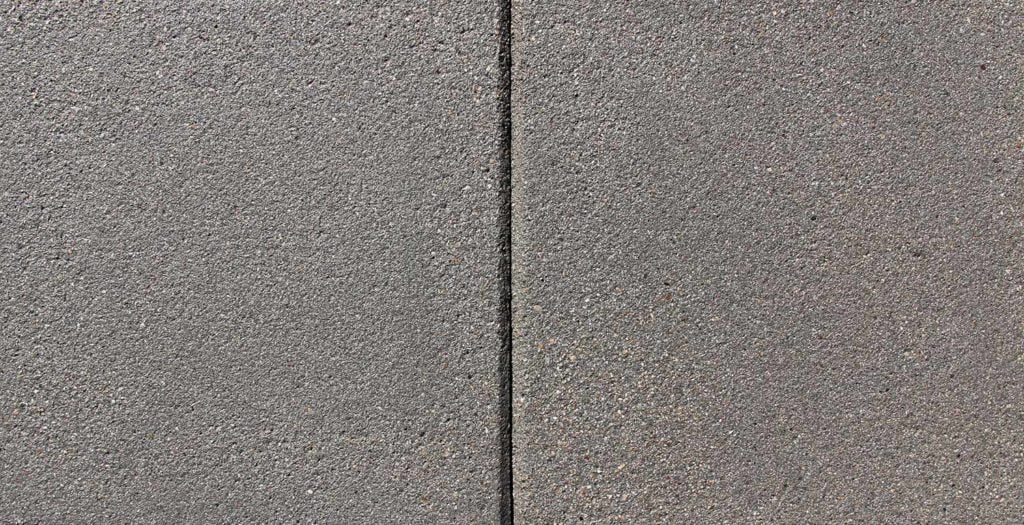

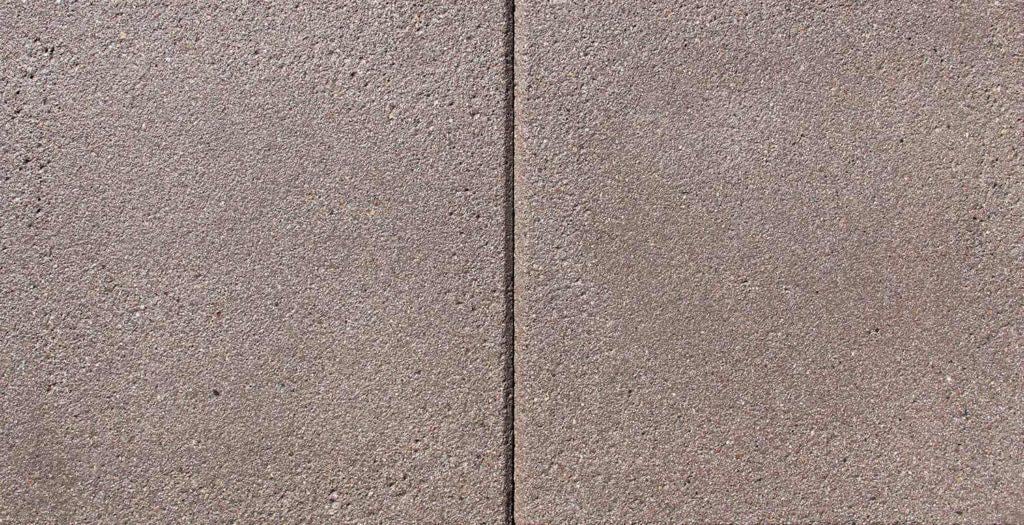

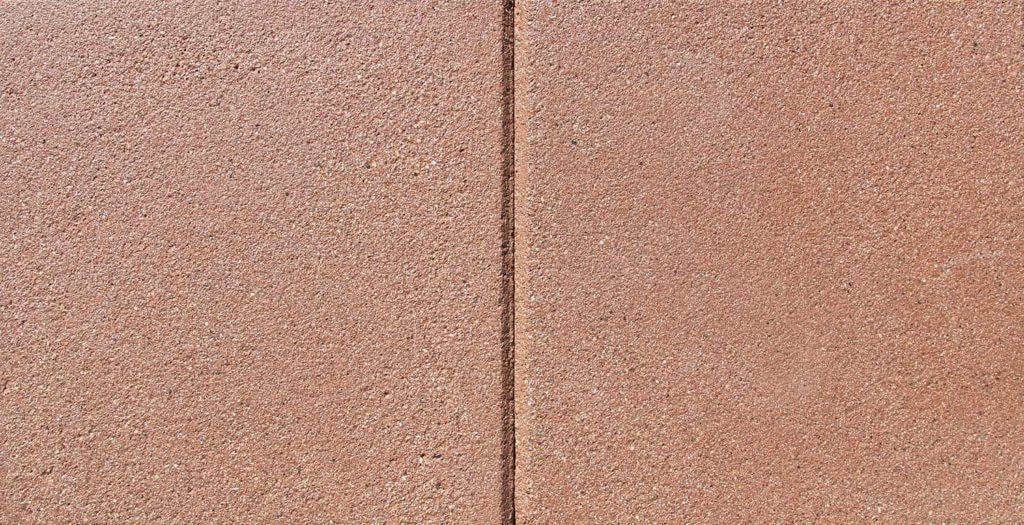

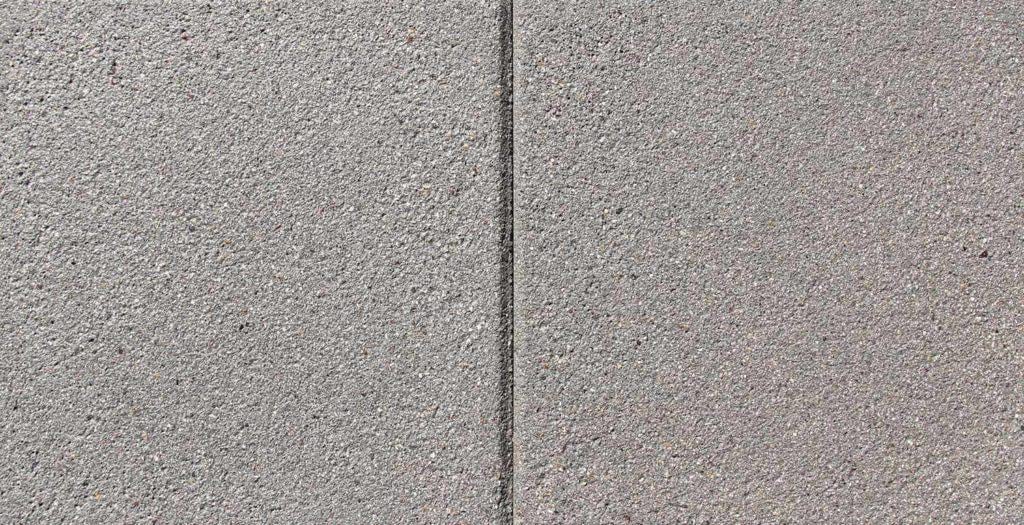

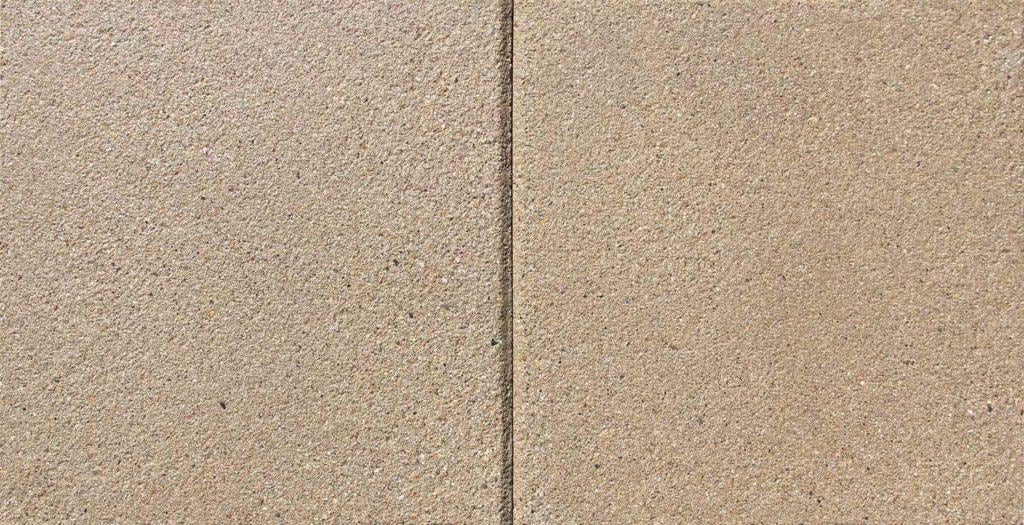

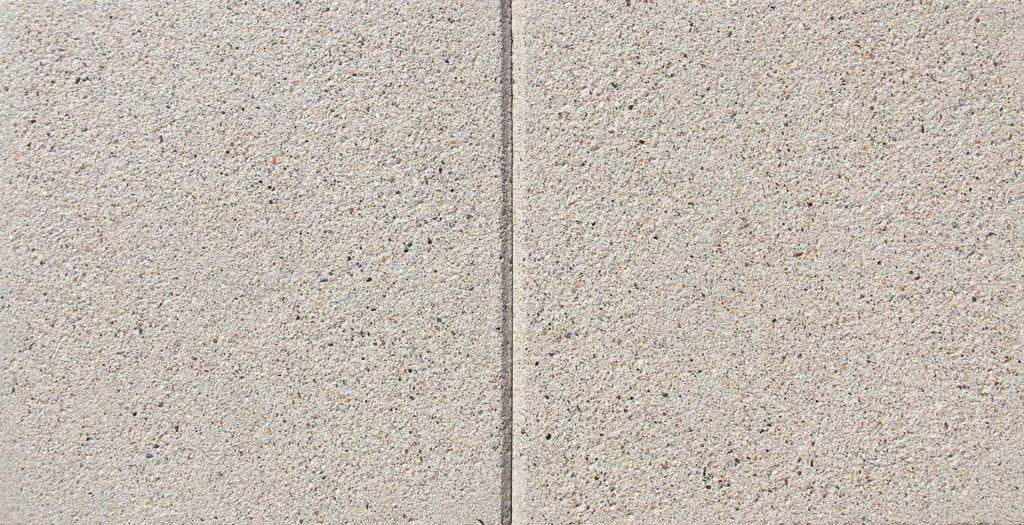

Sandblast Contempo

The Sandblast Contempo finish provides a lightly roughened, sand-blasted texture to the surface. This texture can be varied from a light texture that just exposes a small amount of aggregate, to a heavier more prominent aggregate exposure that leaves a more defined texture.

HDG SW Series Concrete Paver - Rouge Color - Venetian Finish

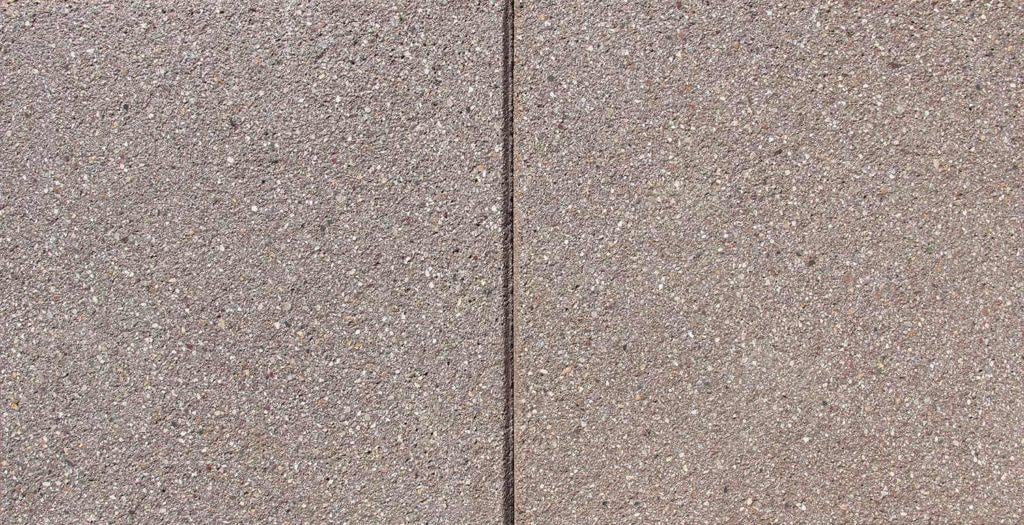

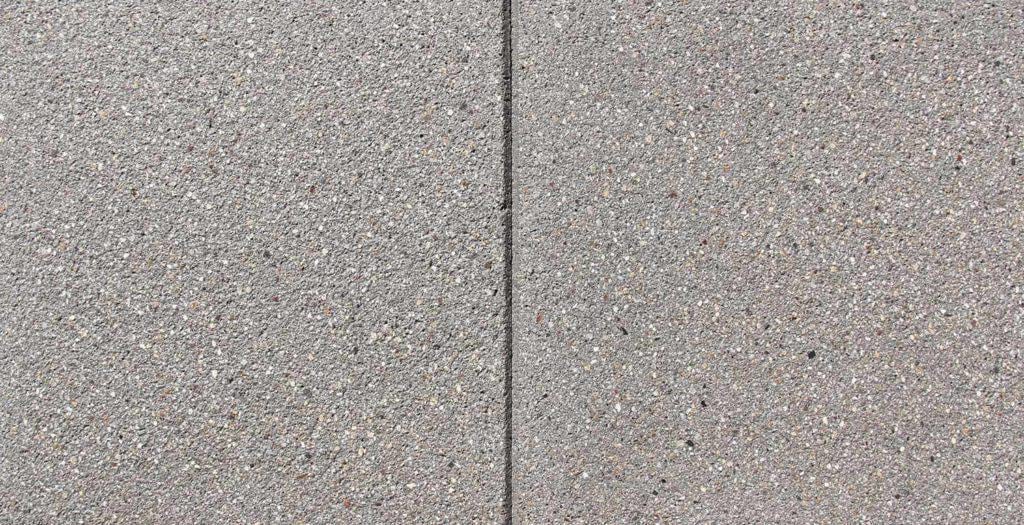

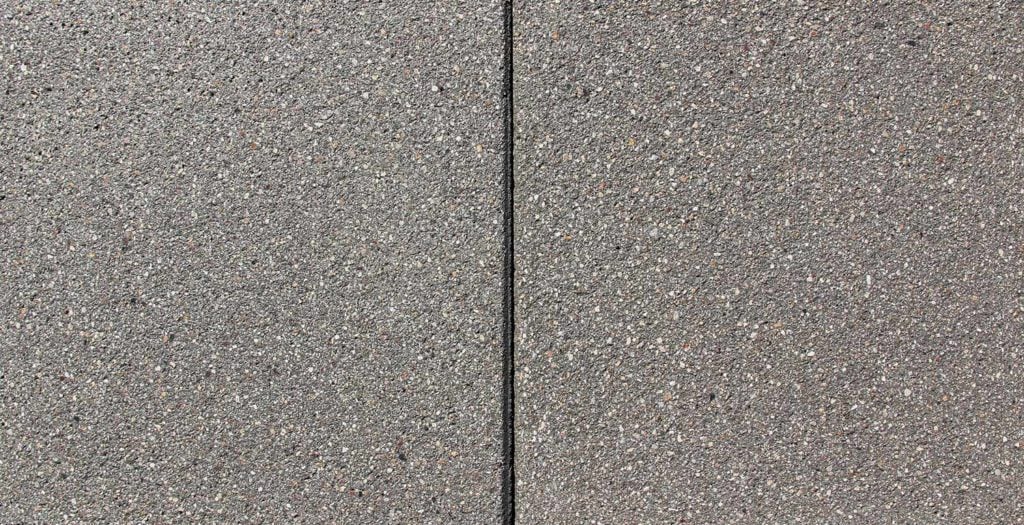

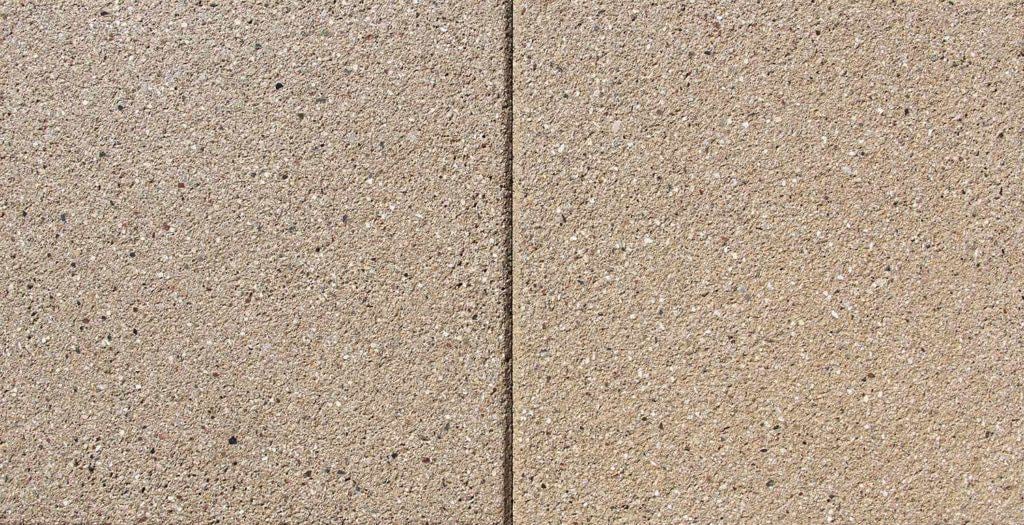

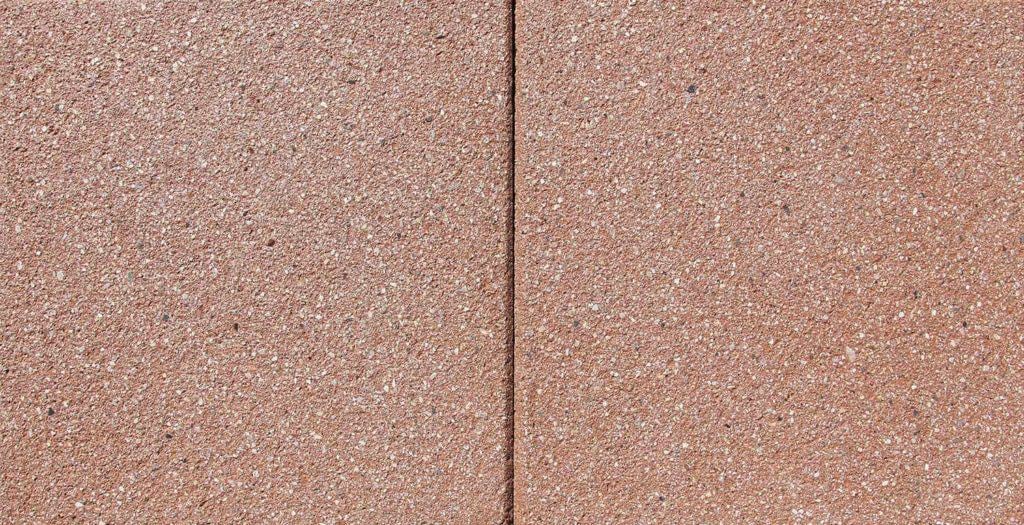

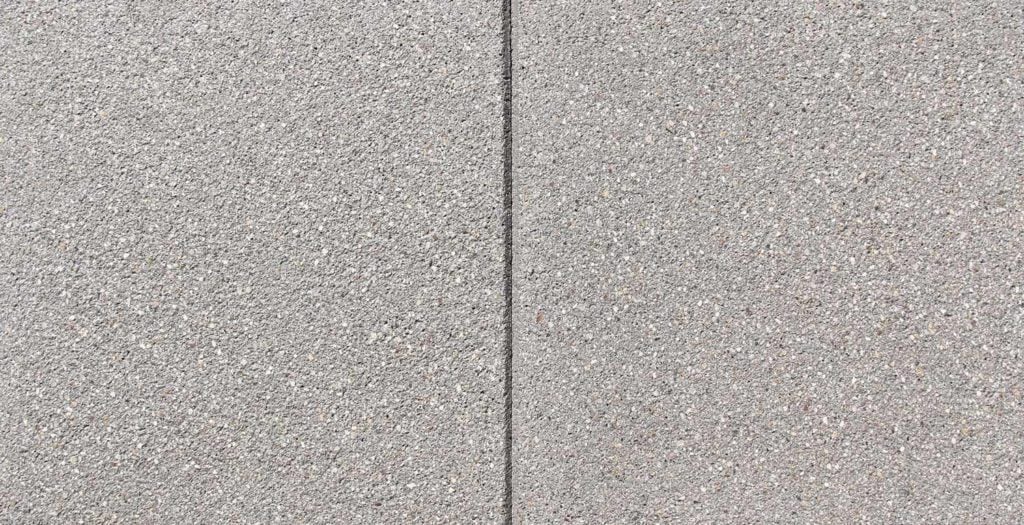

HS Venetian

The HS Venetian finish combines the granite-like appearance with a delicate sandstone texture that adds slip resistance to the surface. This process texturizes the face of the paver, naturally exposing the aggregates to produce a one of a kind look. Custom colors along with special aggregates can be used to achieve an ultra custom look.

Three Sizes Available

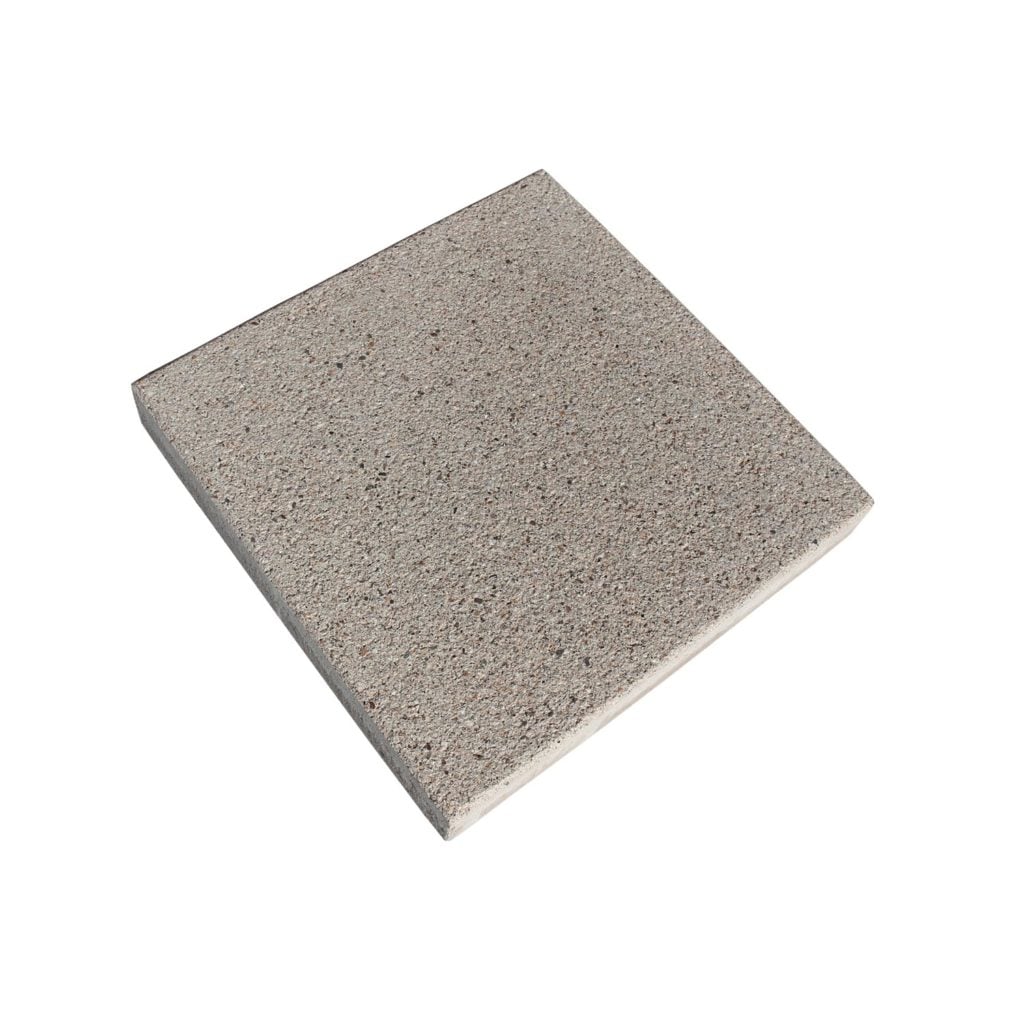

Nominal size: 12 x 12 inches
Actual size: 11 3/4 x 11 3/4 inches, 297 x 297 mm
Thickness: 5 cm

Stones Per Sq. Ft.: 1
Stones Per pallet: 120
Sq Ft Per Pallet: 120
Weight Per Piece: 22 lbs
Weight Per Pallet: 2690

Patterns: 3 Piece Ashlar, Combination Herringbone, Random Runner, Stacked Bond, Running Bond

Patterns: 3 Piece Ashlar, Combination Herringbone, Random Runner, Stacked Bond, Running Bond

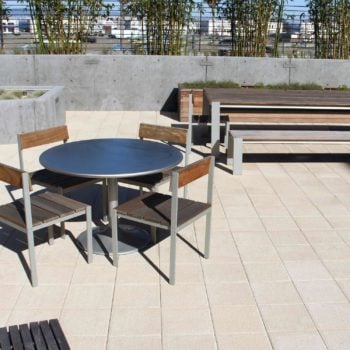

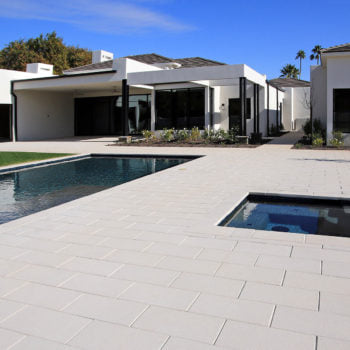

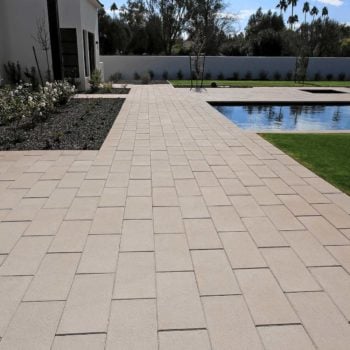

Applied Examples

Nominal size: 12 x 24 inches
Actual size: 11 3/4 x 23 1/2 inches, 297 x 597 mm
Thickness: 5 cm

Stones Per Sq. Ft.: 0.50
Stones Per pallet: 60
Sq Ft Per Pallet: 120
Weight Per Piece: 44 lbs
Weight Per Pallet: 2690

Patterns: 3 Piece Ashlar, Modified-Herringbone, Herringbone, Random Runner, Stacked Bond, Basket Weave, Running Bond

Patterns: 3 Piece Ashlar, Modified-Herringbone, Herringbone, Random Runner, Stacked Bond, Basket Weave, Running Bond

Applied Examples

Nominal size: 24 x 24 inches
Actual size: 23 1/2 x 23 1/2 inches, 597 x 597 mm
Thickness: 5 cm

Stones Per Sq. Ft.: 0.25
Stones Per pallet: 20
Sq Ft Per Pallet: 80
Weight Per Piece: 90 lbs
Weight Per Pallet: 1813

Patterns: 3 Piece Ashlar, Running Bond, Stacked Bond

Patterns: 3 Piece Ashlar, Running Bond, Stacked Bond

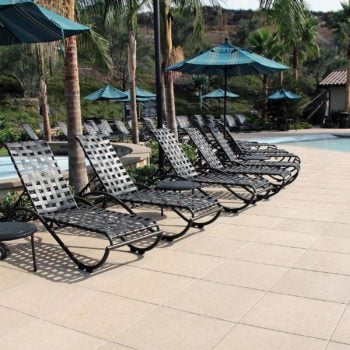

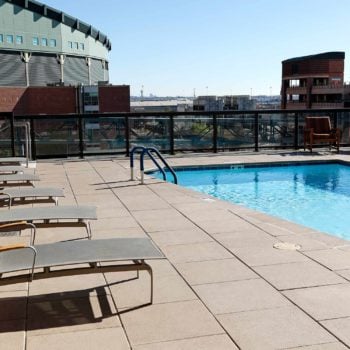

Applied Examples

Help and Resources

Do you have a project you require a solution for, or need more product details? Call 503.360.9551 or Click.
