Innovative Waterproof Decking System

HDG is proud to offer builders, architects, and homeowners an innovative waterproof decking system. The DuxxBak™ water shedding system directs water toward the edge of the deck, in the direction of the designed slope. This keeps the living area or storage area beneath the decking surface completely dry. Best of all, this engineered capability is built into DuxxBak composite decking so a water tight installation doesn’t require the installation of a secondary underdeck or internal drainage system made up of troughs and gutters. Installing the DuxxBak waterproof decking system expands the living area without the problems of moisture buildup common to other underdeck drainage systems.

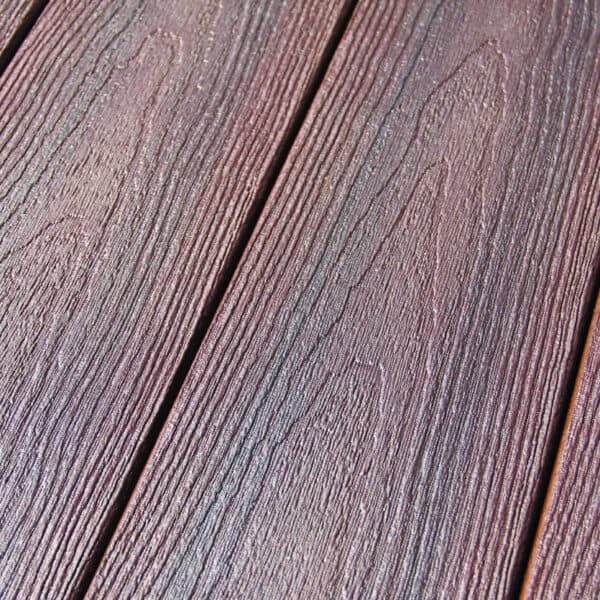

DuxxBak Composite Waterproof Decking System Wood Grain Surface Detail

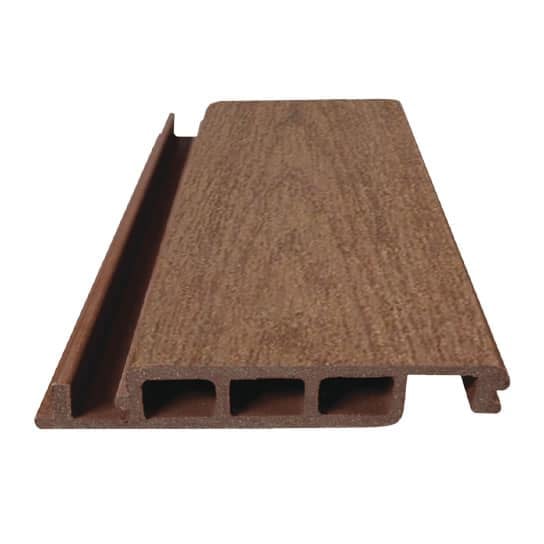

DuxxBak Waterproof Decking System in Rustic-Red

What is DuxxBak and How Does it Work?

DuxxBak has dimensionally realistic wood grain yet contains no wood. Made of a Biodac®, rice hulls, polyethylene resins, and other high quality ingredients it has very minimal water absorption compared to wood-composite and PVC decking products. DuxxBak wood-free composite decking is engineered to be watertight. The unique interlocking design keeps water from leaking through the deck. Instead, Water travels through the Duxxbak™ channels and exits at the end of the deck.

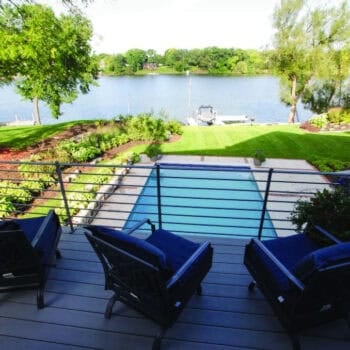

Create Additional Living Space
with DuxxBak Waterproof Decking

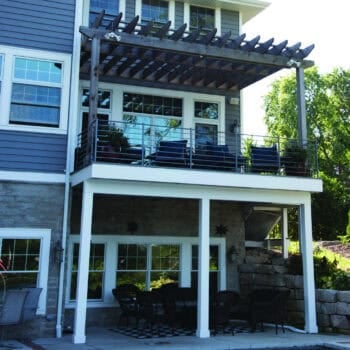

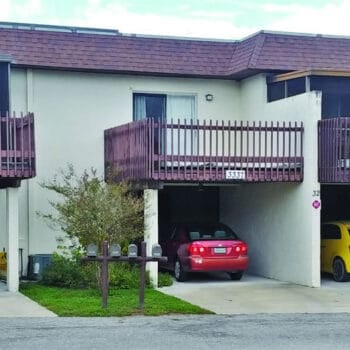

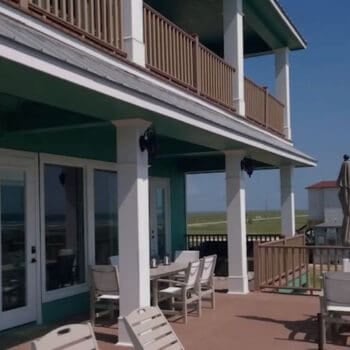

Install DuxxBak waterproof decking on a 2nd level deck and the space underneath becomes usable as extended outdoor living space or storage. When the rain moves in promising to soak outdoor activities, those activities can move under deck and continue. Outdoor furniture, vehicles, and other equipment can safely be stored under the deck no matter the weather.

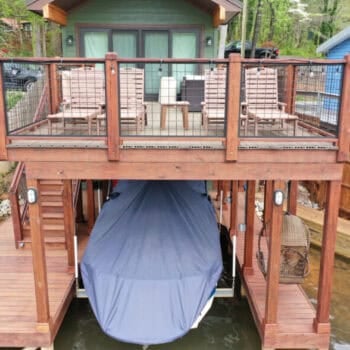

Applications for a waterproof decking system include covered patios, sundecks, roof top decks, boathouse sundecks and when you want to protect the substructure or what lies below. A water shedding deck provides usable space in any kind of weather.

Benefits of DuxxBak Waterproof Decking System

Installation Benefits

  • No underdeck water contraptions required
  • Hidden fasteners eliminate the need for visible face screws
  • Water drains off deck with a 1/8” slope in framing
  • Strong, durable decking allows 24” on center joists
  • DuxxBak® decking is available in 12’, 16’,  and 20’ lengths
  • Eliminates the need for secondary underdeck or internal membrane drainage systems.
  • Spans joists at 24” OC
  • Easy to install
  • Doesn’t require painting, staining, or waterproofing

Material Properties

  • Eco-friendly, made of a Biodac®, rice hulls, polyethylene resins, and other high quality ingredients
  • Wood-free composite decking contains no wood flour unlike wood composite competitors
  • Unique brushed finish with high slip resistance
  • Very minimal water absorption compared to wood-composite and PVC decking products
  • Industry-leading ratings for mechanical strength and durability
  • Resistant to scratching
  • Naturally mold and mildew resistant
  • Never have to replace rotted, cracked, or warped boards again
  • High fade resistance
  • Superior color retention
  • Doesn’t require painting, staining, or waterproofing

Peace of Mind

  • Protects building foundation by diverting water away
  • Lifetime of enjoyment
  • Lifetime limited warranty, which provides coverage against:
  • Manufacturing Defects
  • Splintering, Splitting, and Delaminating
  • Termite Damage
  • Rot, Mildew, Fungal Decay, and Mold Damage
  • Significant Color Fade
  • Increases functional outdoor living space
Green Bay Decking DuxxBak Composite Decking Profile

Product Highlights

Unique water shedding board eliminates the need for a secondary drainage system

  • DuxxBak® profile contains inherent hidden fastener system
  • Outdoor furniture can be safely stored under the deck
  • Outdoor activities can continue during periods of rainfall
  • Resistant to decay and mold
  • Strong and durable
  • Less maintenance
  • Eco-friendly
  • Lifetime limited warranty
  • Fast, easy installation
  • DuxxBak® decking can be installed on joists spaced at 24”

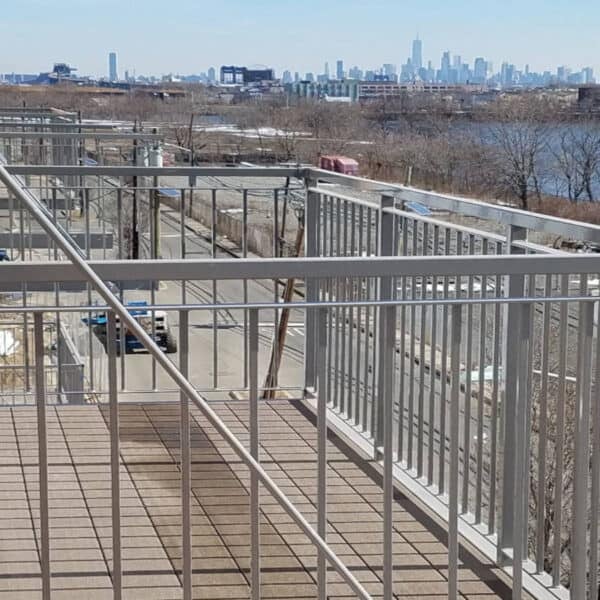

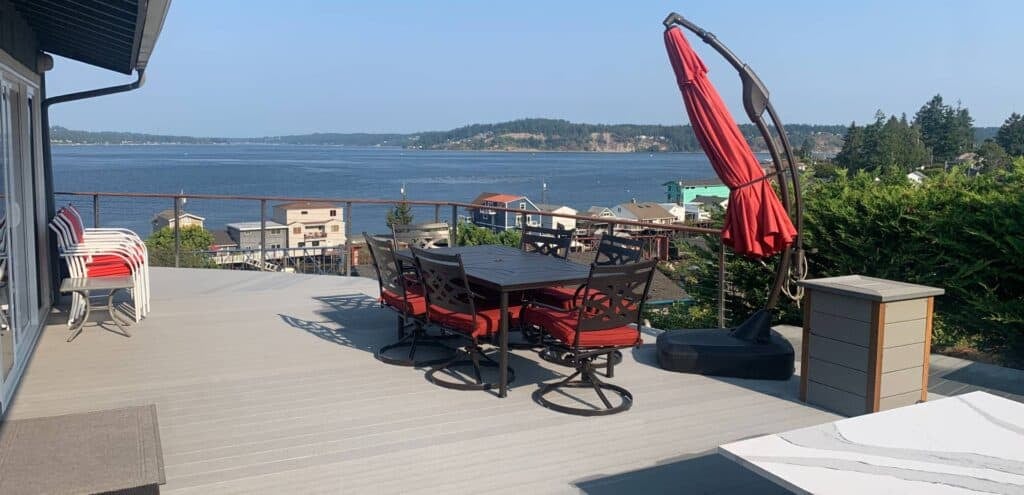

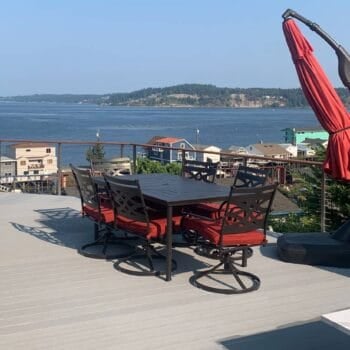

Latest DuxxBak® Project

Color and Finishes

DuxxBak water shedding composite decking is available in both brushed matte finish and OPTIMA® embossed wood grain finish. Colors available in brushed matte finish are Walnut, Mahogany, Driftwood, Cedar, Copper Canyon, Rustic Red, and Cool Sand. Colors available in OPTIMA® dual-embossed, variegated wood grain finish are Boardwalk Grey, Warm Cedar, Black Walnut, Sedona Red, and Dark Mahogany. To validate color and finish choices for your project we suggest ordering samples.

Selecting the ideal finish for a DuxxBak deck project is crucial. It largely depends on specific needs and preferences. To ensure the selection perfectly aligns with the envisioned decking project, ordering samples is recommended. They’ll give a firsthand look and feel of the finishes, making the decision-making process much easier.

Traction Finish

Traction Finish: Opt for this finish if prioritizing slip resistance. The Traction Finish features a brushed surface that enhances grip, making it an excellent choice for safety-conscious areas.

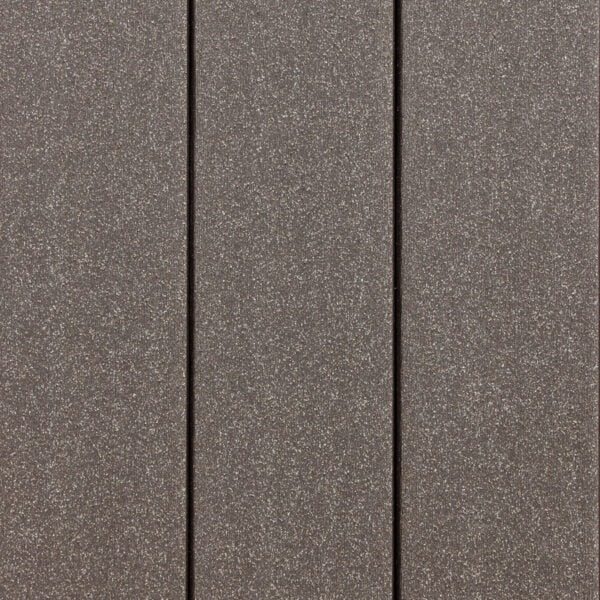

Walnut Color Traction Finish DuxxBak Decking

Walnut

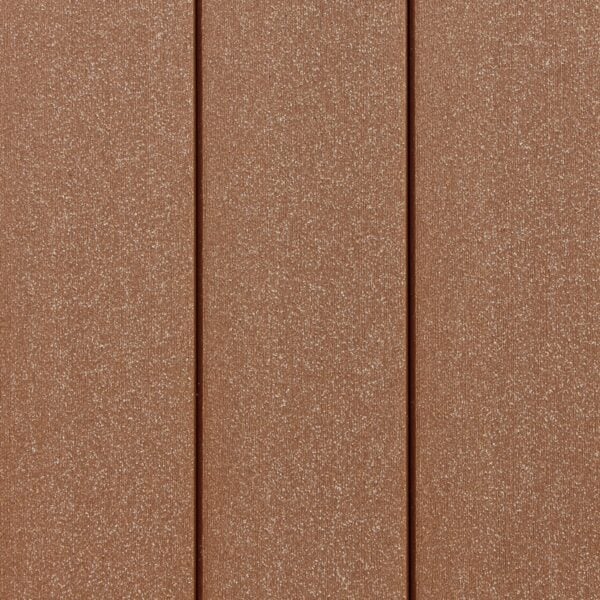

Mahogany Color Traction Finish DuxxBak Decking

Mahogany

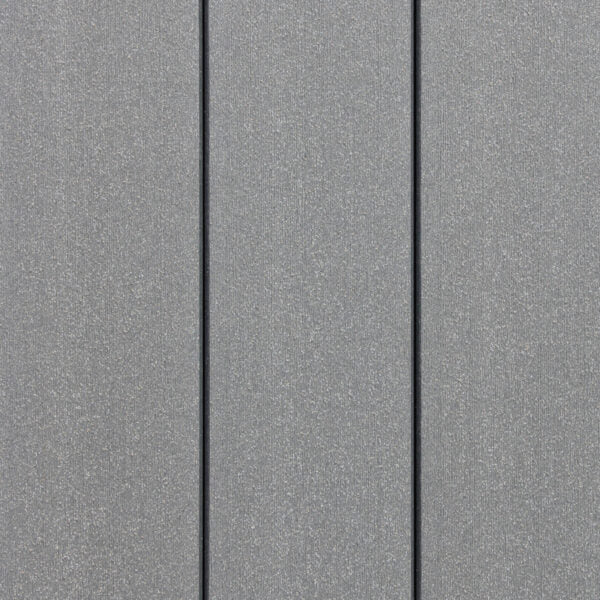

Driftwood Color Traction Finish DuxxBak Decking

Driftwood

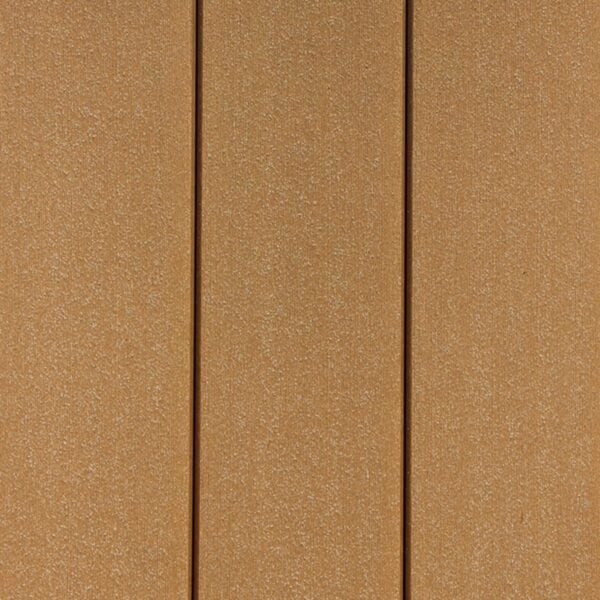

Cedar Color Traction Finish DuxxBak Decking

Cedar

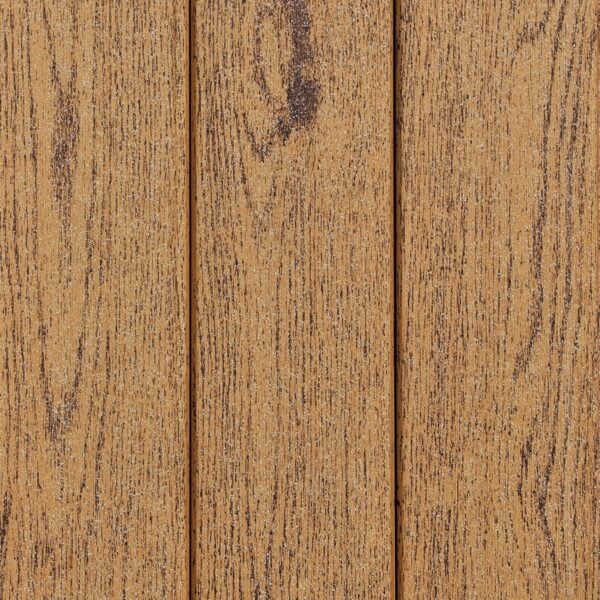

Copper Canyon Color Traction Finish DuxxBak Decking

Copper Canyon

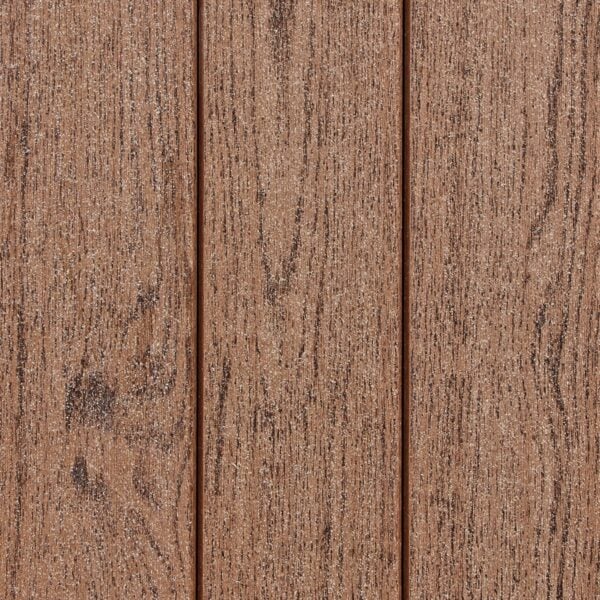

Rustic Red Color Traction Finish DuxxBak Decking

Rustic Red

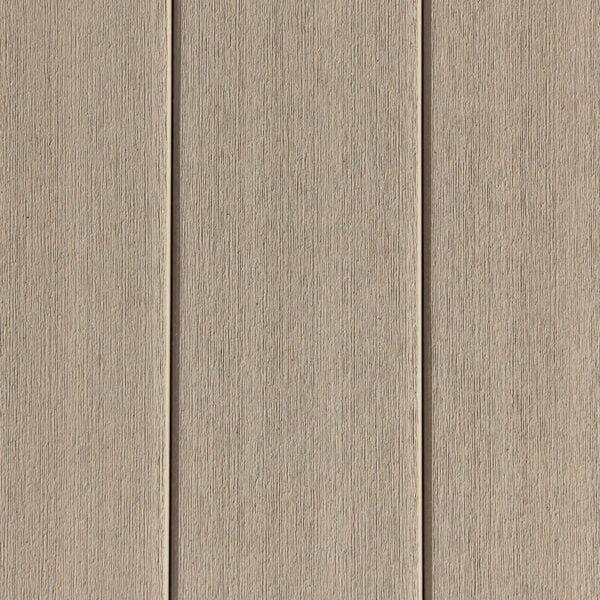

Cool Sand Color Traction Finish DuxxBak Decking

Cool Sand

ArmorCap Embossed Wood Grain Finish

ArmorCap Embossed Wood Grain Finish: If aiming for a refined, wood-inspired appearance, the ArmorCap finish is the way to go. It boasts a captivating dual-embossed, variegated wood grain texture that adds a touch of natural elegance to the space.

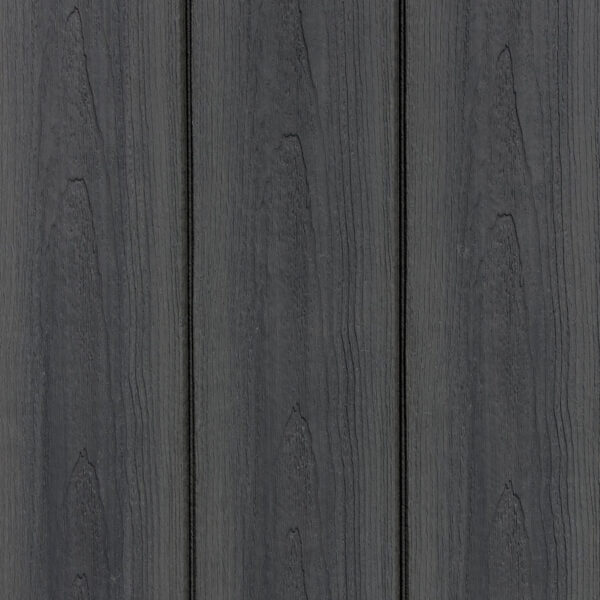

Boardwalk Grey Armor Cap Finish DuxxBak Decking

Boardwalk Grey

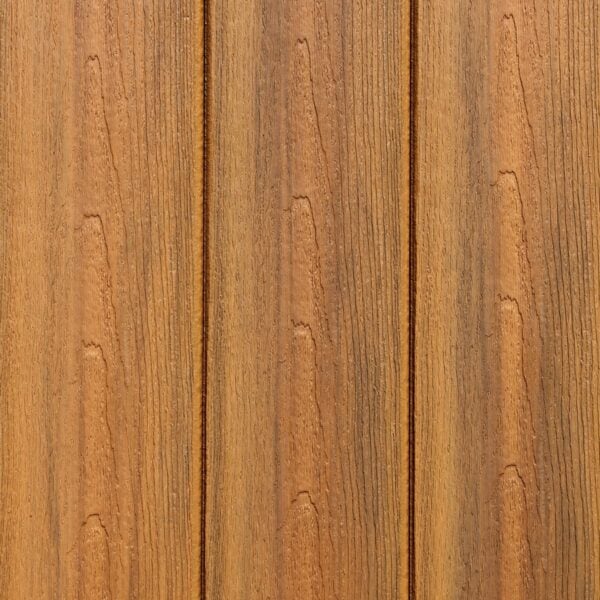

Warm Cedar Grey Color Armor Cap Finish DuxxBak Decking

Warm Cedar

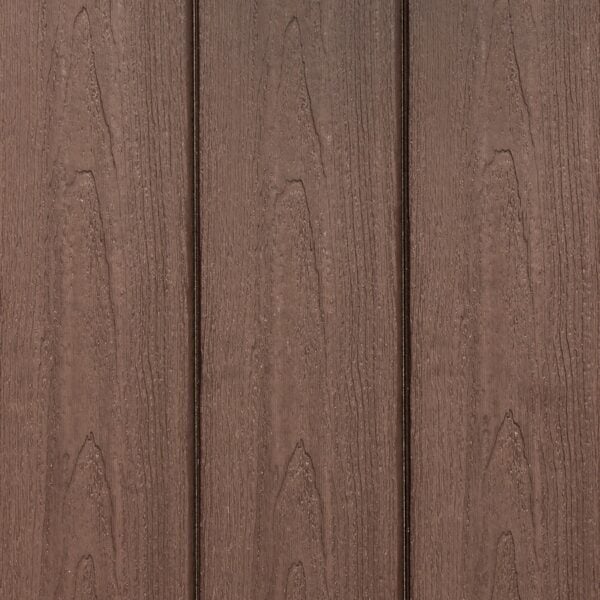

Black Walnut Color Armor Cap Finish DuxxBak Decking

Black Walnut

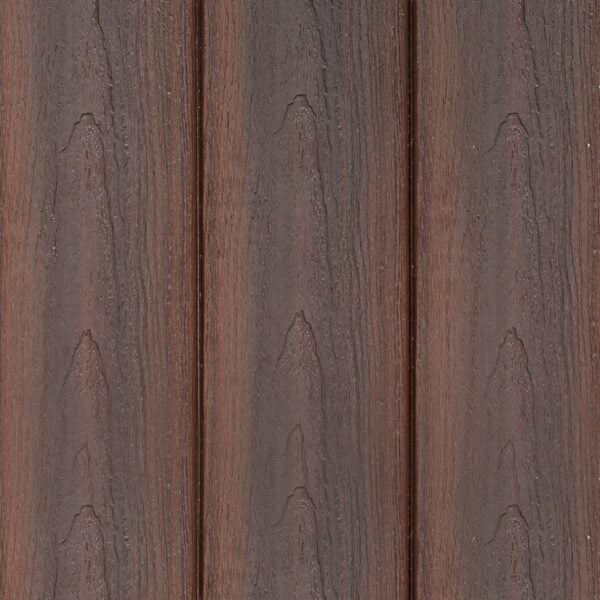

Sedona Red Color Grey Armor Cap Finish DuxxBak Decking

Sedona Red

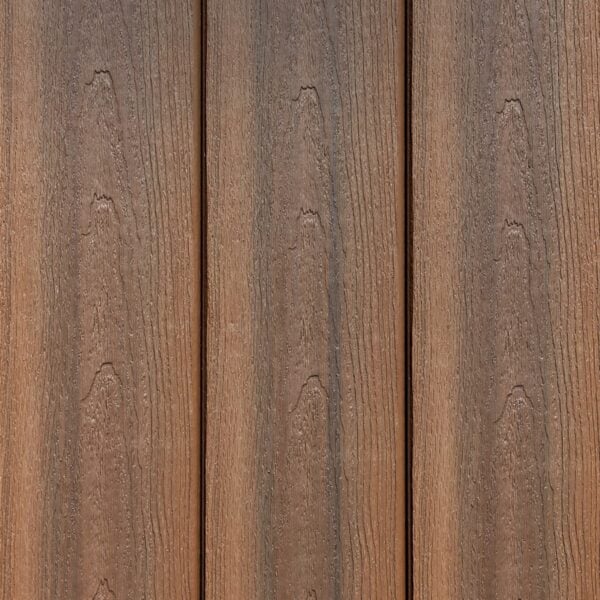

Dark Mahogany Armor Cap Finish DuxxBak Decking

Dark Mahogany

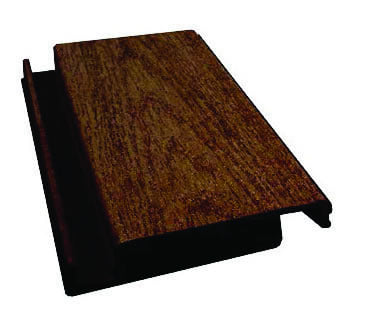

5_4 x 7-1_4 inch DuxxBak Decking
DuxxBak OPTIMA Rectangular Profile Used on Steps
DuxxBak Matching BRUSHED Rectangular Profile Used on Steps

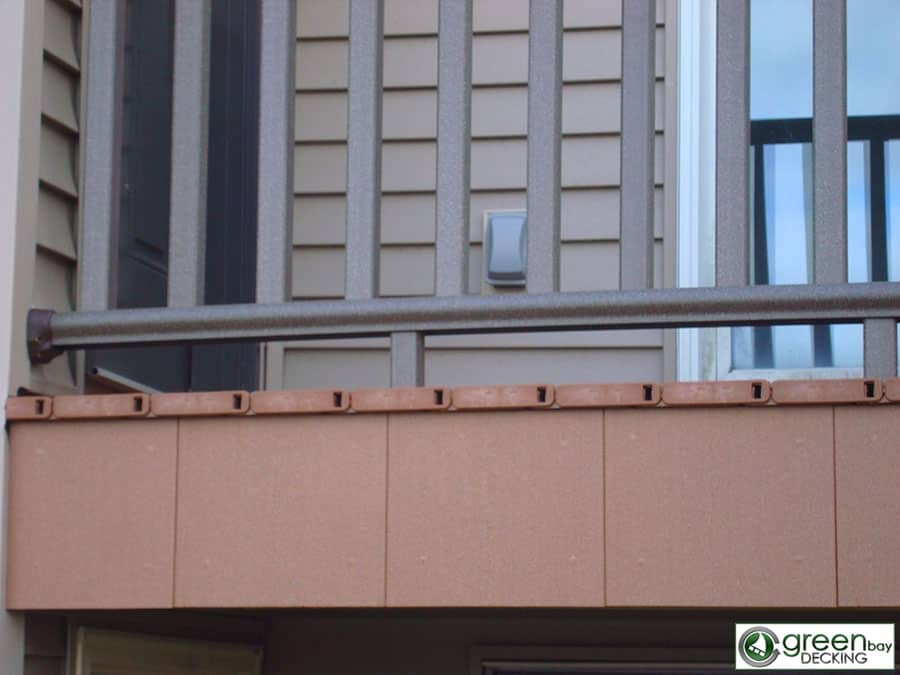

DuxxBak Decking End Cap for Waterproof Decking System

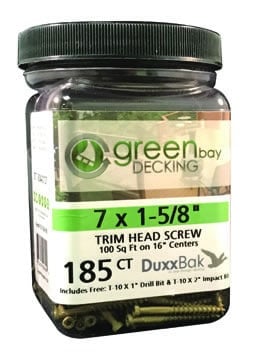

Genuine Green Bay Decking screws for DuxxBak Waterproof Decking System

DuxxBak® Decking

Description: 5/4” x 7-1/4”
Height: 1-1/4”
Width: 5-3/4” coverage
Lengths: 12’, 16’, 20’
Weight: Approx. 2.1 lbs./ft.

Matching OPTIMA® Rectangular Profile Used on Steps

Description: 1” x 6”
Height: 1”
Width: 5-3/4” coverage
Lengths: 12’, 16’, 20’

Matching BRUSHED Rectangular Profile Used on Steps

Description: 5/4” x 6”
Height: 1-1/4”
Width: 5-3/4” coverage
Lengths: 12’, 16’, 20’

DuxxBak® Decking End Cap (Right & Left)

Height: 1-1/4”
Width: 5-3/4”
Weight: Approx. 0.06 lbs

Genuine Green Bay Decking® screws

Available in 7×1 5/8”, 7×2 1⁄2”, and 7×3”

Deck Specialist Cover features Product Review on DuxxBak Decking from Green Bay Decking
Check out the product review in the Spring 2020 Issue of Deck Specialist.
