PB Series

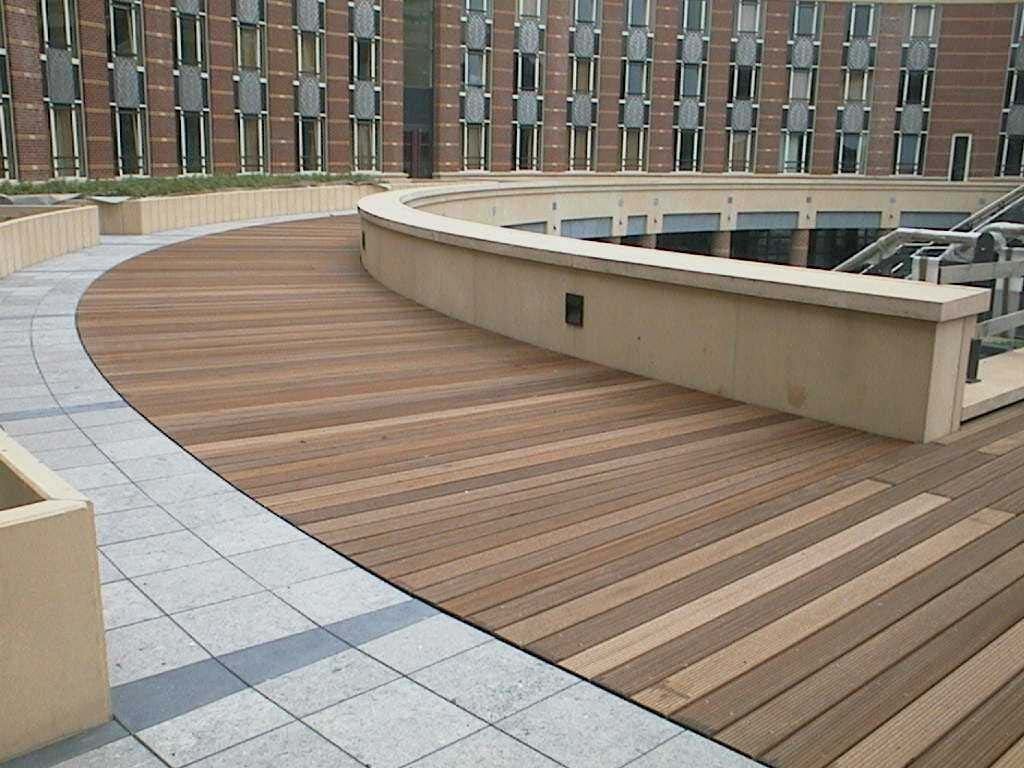

Buzon Pedestals with Wood Decking - HDG Building Materials

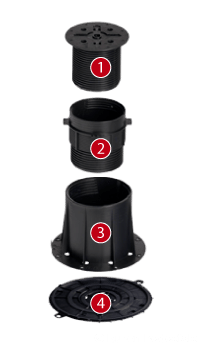

PB Series Components

1. Head The head support is screwed directly onto the base or the coupler. The many different head attachments make the PB pedestal a favorite with contractors.

2. Coupler The coupler is used when the height of the pedestal exceeds 200 mm. Two wire hooks on the sides allow for the pedestals to be tied to each other, guaranteeing greater stability when the height exceeds 600 mm.

3. Base  The base is 3–4.5 mm thick polypropylene with  205mm in diameter. The base can be placed or fixed to a solid substrate. The pedestal can be cut away for positioning against a wall. It also has holes at the bottom for drainage. The PH5 slope corrector and numerous accessories are available to support all types of  materials and structures.

4. Slope Corrector The BC-PH5 can compensate, a horizontal, a slope from 0 to 5% (slope from 0 to 5 cm per meter). This is placed under the base of the pedestal.

HDG Building Materials Offers Buzon Pedestals

PB Series Overview

The Buzon Pedestal System PB Series provides solutions for residential and commercial applications and with the different head options available solves many construction challenges. PB Series pedestals allow adjustments from 14 to 965 mm by stacking couplers. Using multiple slope correctors, pitch can be corrected up to 15%.

PB Series Applications

The PB Series adjustable height pedestal is ideal for outdoor terraces with any kind of decking materials: hardwood, Resysta, stone slabs, structural porcelain tile, glass pavers, composite materials, concrete pavers, metal, or fiberglass grid.

PB Series Slope Correction

Compensate for slope to drain designs or for locally uneven sub-bases. Slope corrector BC-PH5 is placed under the base of the pedestal. Consisting of 2 cylindrical parts, it compensates for 1 to 5% slope by simply rotating the devices. Compensate for up to 15% by coupling three slope correctors.

Slope Correction Diagram for Height Adjustable Screwjack Pedestals from Buzon - HDG Building Materials

Whether you are a construction professional, architect, landscape designer, specifier, or property developer this collection of video resources can help you:

  • Get acquainted with the Buzon pedestal product line and nomenclature
  • Learn how to correct for slope and resolve other technical issues
  • Build your competence around Buzon pedestal systems

If you are completely new to Buzon pedestals or wish to speed the learning of a lesser experienced colleague consider the Buzon Pedestals learning page.

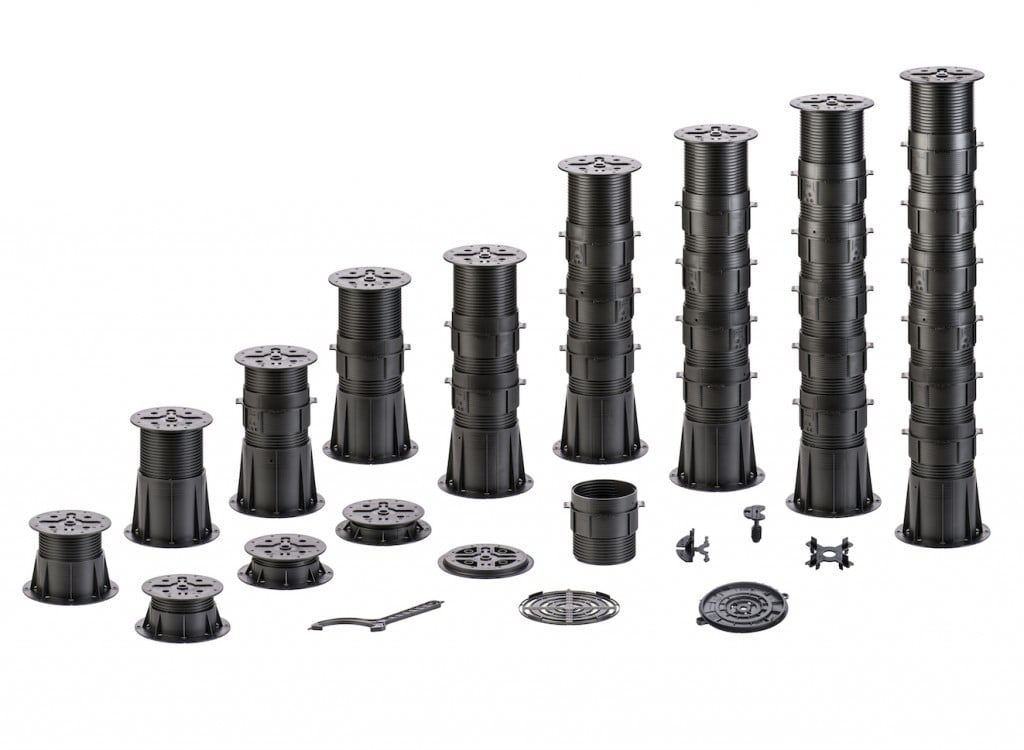

PB Series Adjustable Height Screwjack Pedestal Family

Buzon Pedestals PB Series - HDG Building Materials

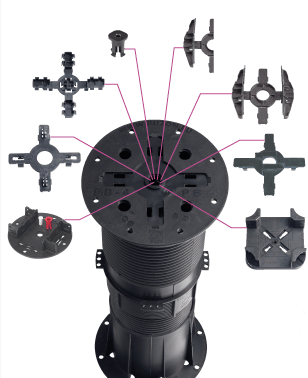

Buzon Pedestal Accessories

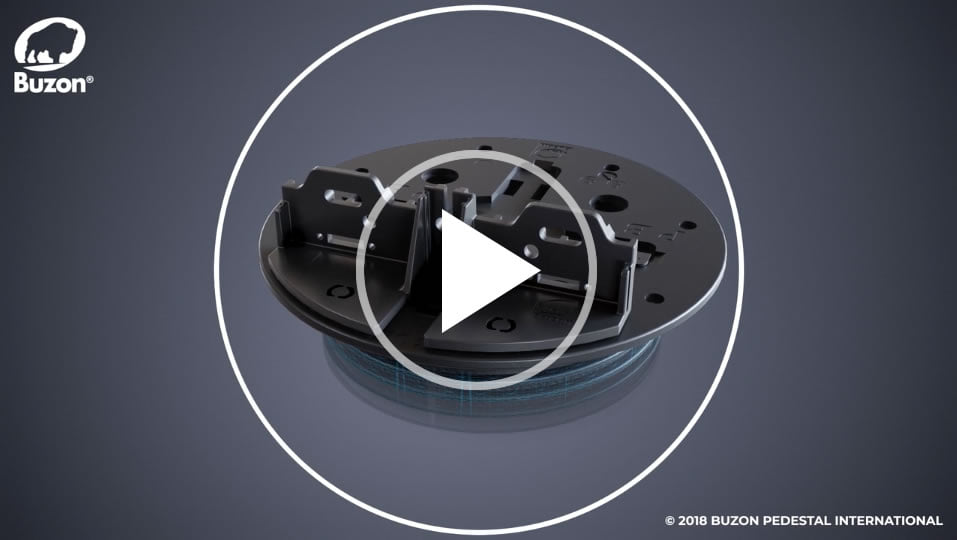

Different accessories can be clipped to the head of pedestal PB-3 to accommodate different shapes, sizes, and types of decking materials.

PB Series options - Buzon Pedestals - HDG Building Materials

Buzon Pedestals
With Hardwood Decking

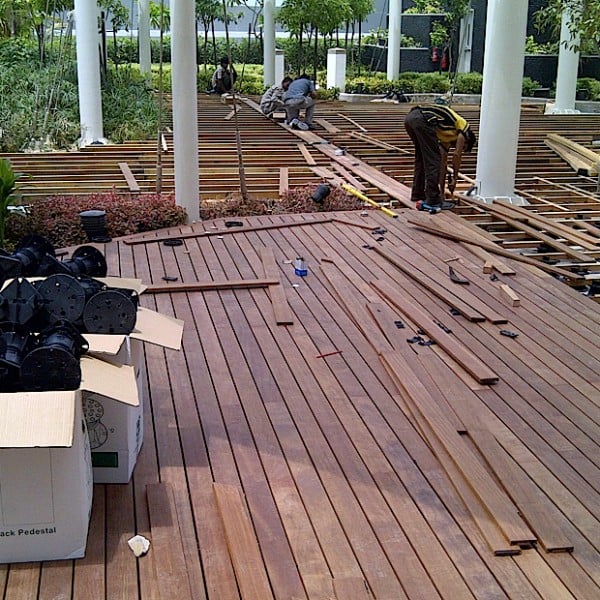

Wood Decking with Buzon Pedestals - HDG Building Materials
Wood Decking with Buzon Pedestals

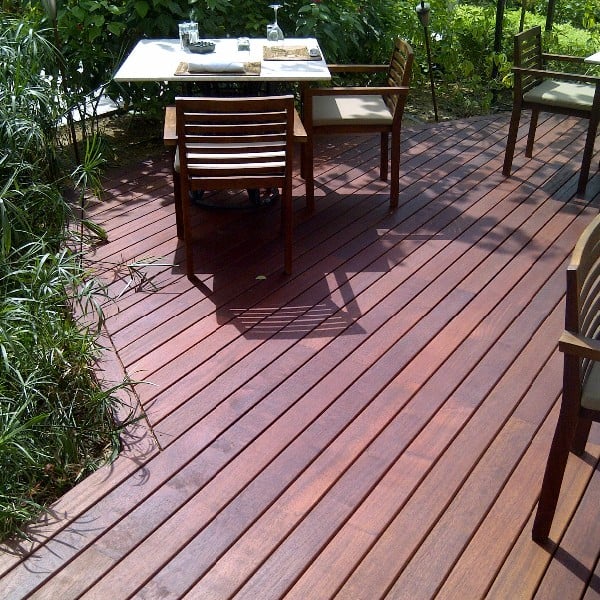

Buzon Pedestals and Massaranduba Hardwood Decking in Outdoor Dining Application
Buzon Pedestals and Hardwood Decking in Outdoor Dining Application

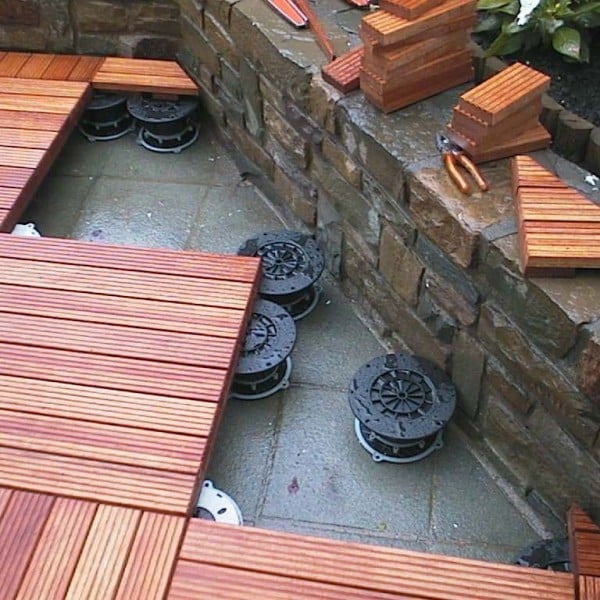

Buzon Pedestals with Ipe Hardwood Deck Tiles
Buzon Pedestals with Ipe Hardwood Deck Tiles

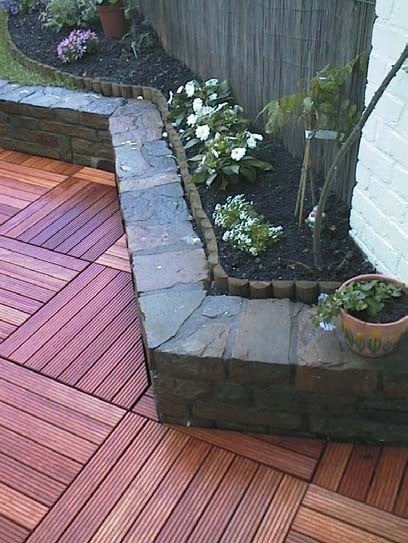

Stone Wall with Ipe Deck Tiles over Buzon Pedestals - HDG Building Materials
Stone Wall with Ipe Deck Tiles over Buzon Pedestals – HDG Building Materials
Buzon Pedestals with Wood Decking 1 - HDG Building Materials
Buzon Pedestals with Wood Decking 1

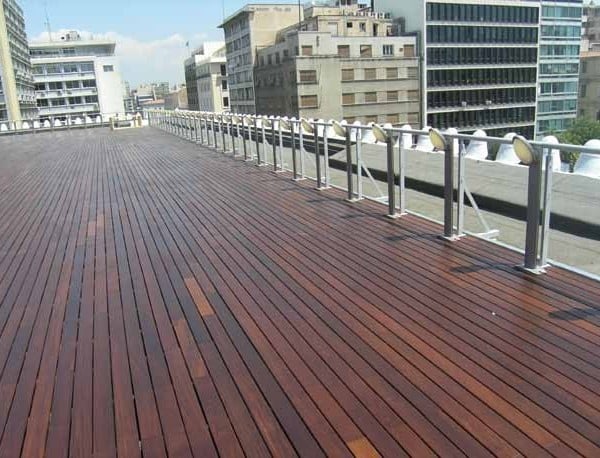

Buzon Pedestals with Wood Decking in Public Terrace - HDG Building Materials
Buzon Pedestals with Wood Decking in Public Terrace

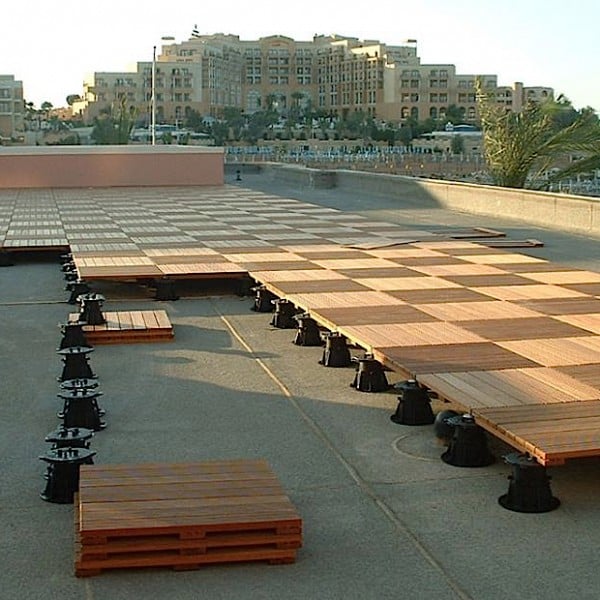

Buzon Pedestals with Ipe Hardwood Deck Tiles - HDG Building Materials
Buzon Pedestals with Ipe Hardwood Deck Tiles – HDG Building Materials

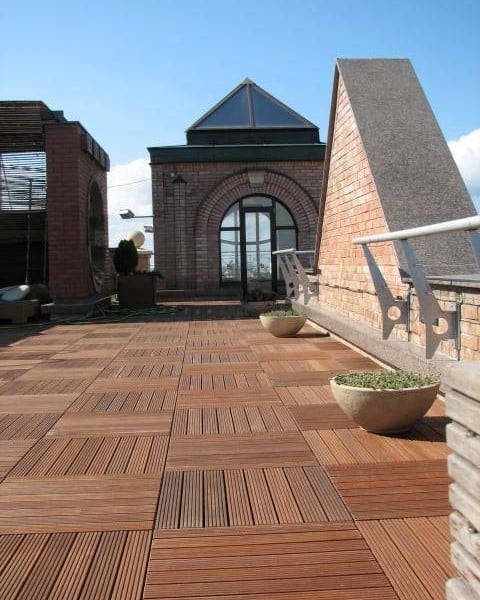

Buzon Pedestals with Ipe Hardwood Tiles - HDG Building Materials
Buzon Pedestals with Ipe Hardwood Tiles – HDG Building Materials

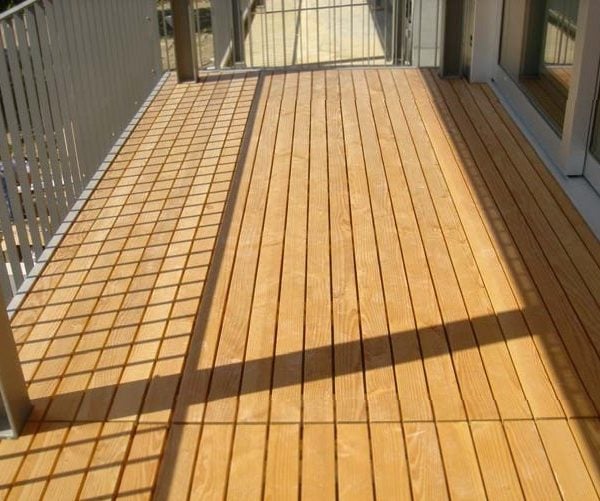

Buzon Pedestals with Wood Decking 2 - HDG Building Materials
Buzon Pedestals with Wood Decking 2

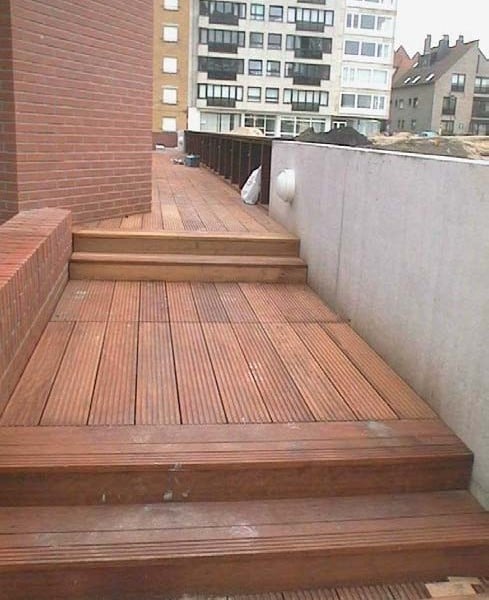

Buzon Pedestals with Wood Decking 4 - HDG Building Materials
Buzon Pedestals with Wood Decking 4

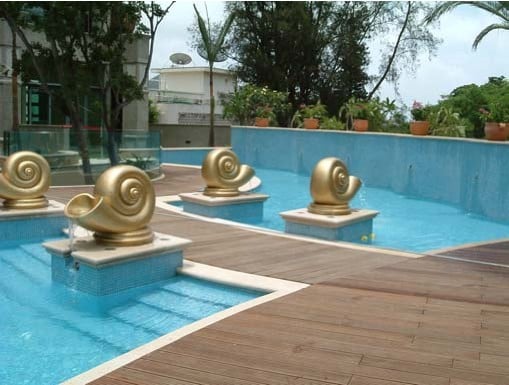

Buzon Pedestals with Wood Decking 5 - HDG Building Materials
Buzon Pedestals with Wood Decking 5

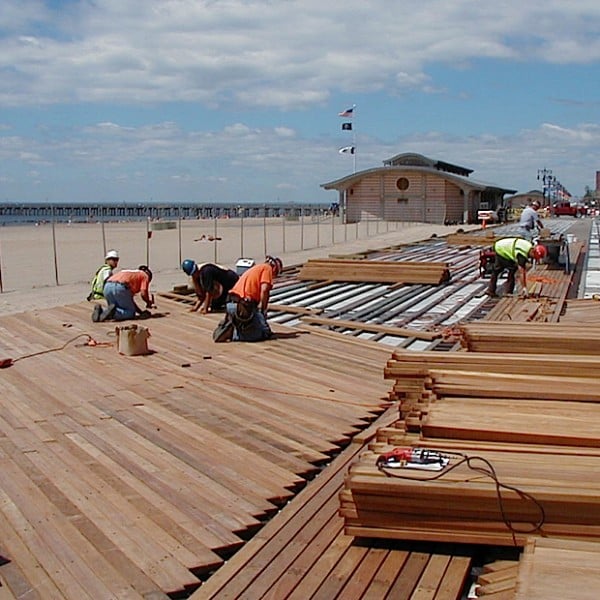

Buzon Pedestals with Hardwood Decking - HDG Building Materials
Buzon Pedestals with Hardwood Decking

Buzon Pedestals With Stone Slabs and Structural Porcelain Pavers

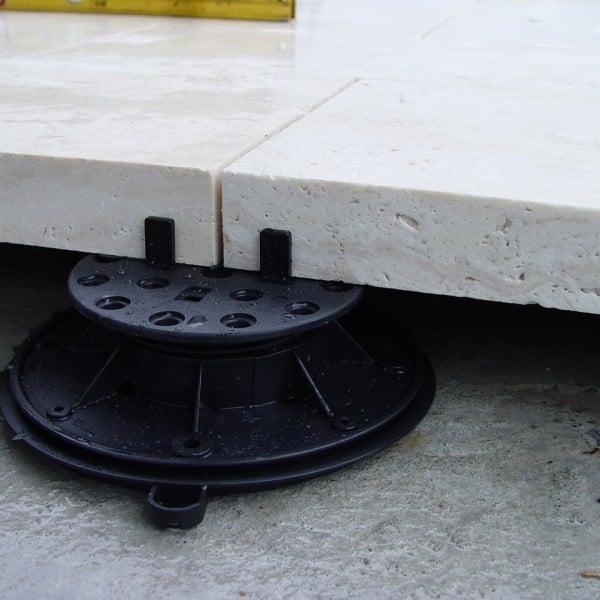

Buzon Pedestal Spacer Tabs with Stone Slab Paving - HDG Building Materials
Buzon Pedestal Spacer Tabs with Stone Slab Decking

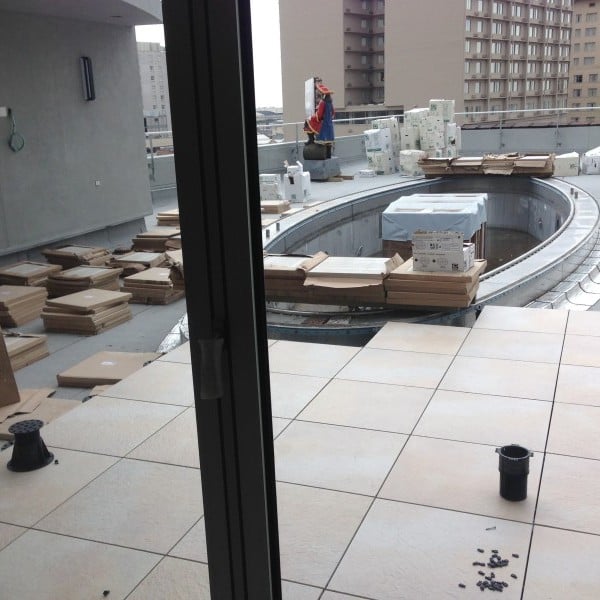

Canal Street Rooftop Pool Terrace 3 - Buzon Pedestals + Porcelain Pavers
Canal Street Rooftop Pool Terrace 3 – Buzon Pedestals + Porcelain Pavers

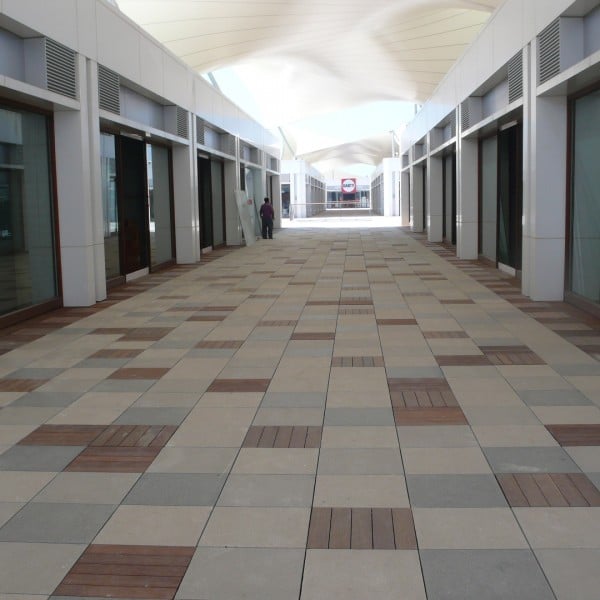

BC Series Buzon Pedestals with Stone Tile - Marina Application 2 - HDG Building Materials
BC Series Buzon Pedestals with Stone Tile – Marina Application 2

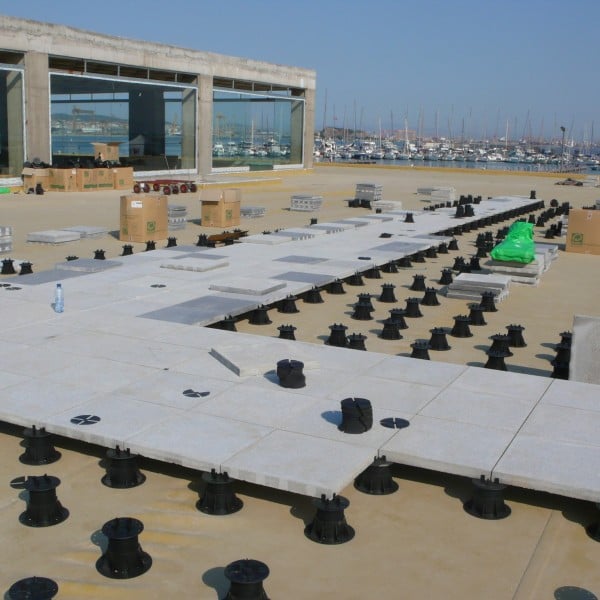

Buzon Pedestal with Stone Tile During Layout - HDG Building Materials
Buzon Pedestal with Stone Tile During Layout

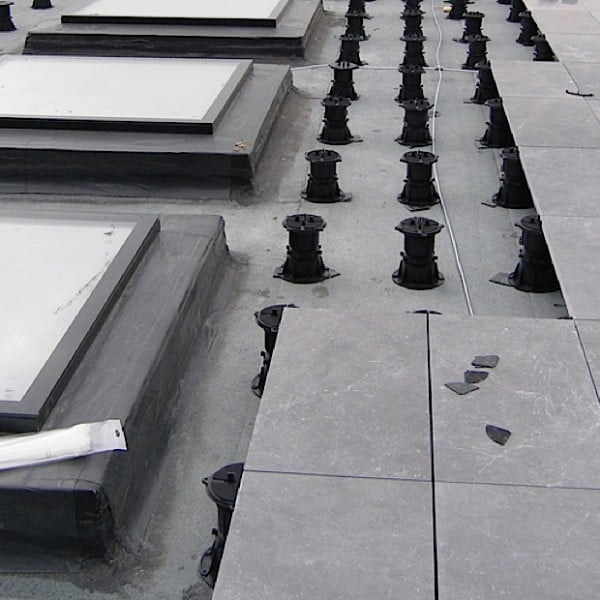

Buzon Pedestals with Stone Slabs - HDG Building Materials
Buzon Pedestals with Stone Slabs

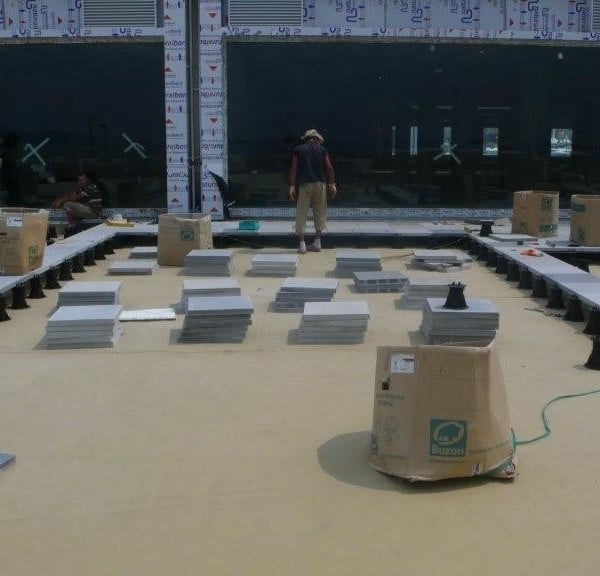

BC Series Buzon Pedestals with Stone Tile - Marina Application 5BC Series Buzon Pedestals with Stone Tile - Marina Application 6 - HDG Building Materials
BC Series Buzon Pedestals with Stone Tile – Marina Application 5BC Series Buzon Pedestals with Stone Tile – Marina Application 6

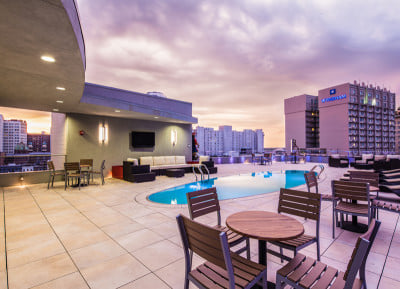

Outdoor Living Rooftop Pool Deck on Canal Street Built with Buzon Pedestals and Porcelain Pavers
Outdoor Living Rooftop Pool Deck on Canal Street Built with Buzon Pedestals and Porcelain Pavers

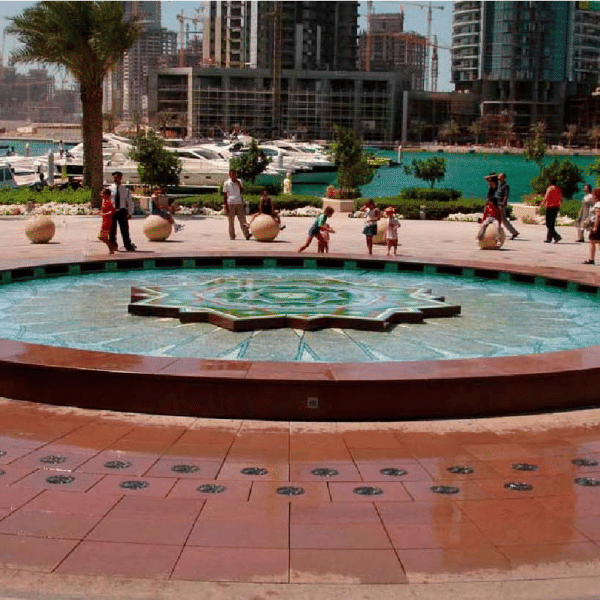

Buzon Pedestals in Civic Plaza - HDG Building Materials
Buzon Pedestals in Civic Plaza

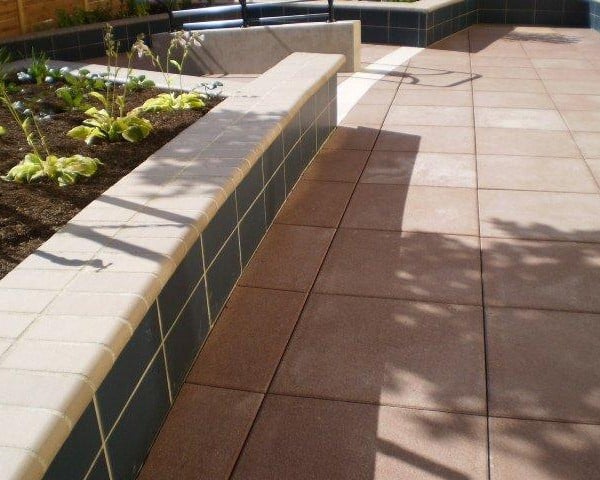

Buzon Pedestals with Concrete Pavers - HDG Building Materials
Buzon Pedestals with Concrete Pavers

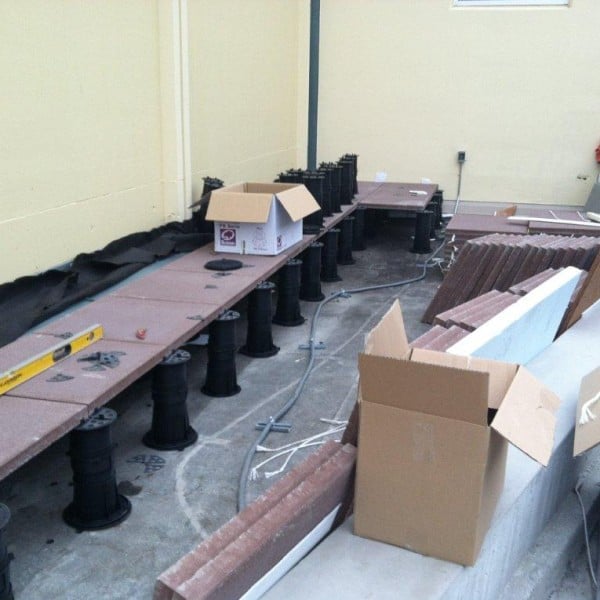

Buzon Pedestals with Tile Pavers - HDG Building Materials
Buzon Pedestals with Tile Pavers

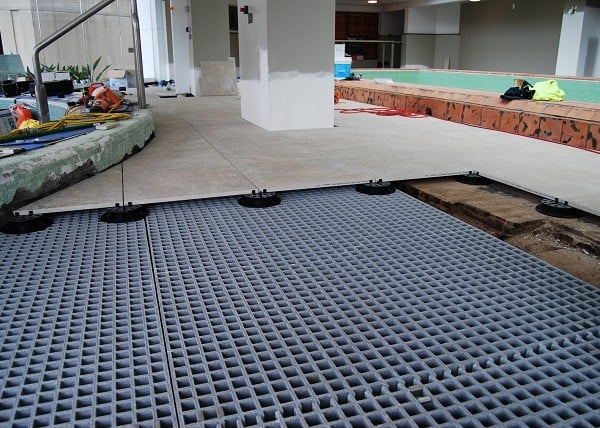

Buzon Pedestals on HDG Grating Panels over Uneven Floor
Buzon Pedestals on HDG Grating Panels over Uneven Floor

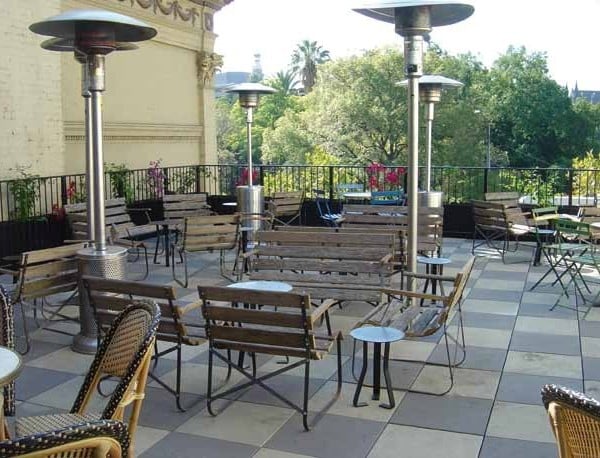

Buzon Pedestals with Concrete Tiles in Restaurant Terrace - HDG Building Materials
Buzon Pedestals with Concrete Tiles in Restaurant Terrace
