BC Series

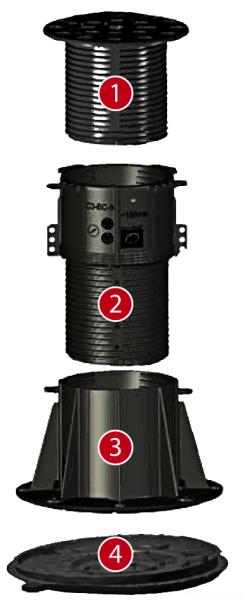

Buzon Pedestals BC Series callout - HDG Building MaterialsBuzon BC-Series Pedestal Components

1) Head Head of the support is screwed directly onto the base or the coupler. The head, with a diameter of 150 mm, with the options of tabs of different thickness from 2, 4.5, 6,  8, to 10 mm making an open joint between stone tiles. On the head of the coupler, a safety notch at the base of the threaded part indicates the limit of adjustment in height and prevents over extension. On the head of support, 12 holes of 8 mm in diameter for attaching options.

2) Coupler is used when the height of the pedestal exceeds 200 mm. Two wire hooks on the sides allow for the pedestals to be tied to each other, guaranteeing greater stability when the height exceeds 600 mm.

3) Base  The base is 5 mm thick polypropylene, 205 mm in diameter and can be simply placed or fixed on a solid substrate. It also has holes at the bottom for drainage

4) Slope Corrector The BC-PH5 can compensate, a horizontal, a slope from 0 to 5% (slope from 0 to 5 cm per meter). This is placed under the base of the pedestal.

HDG Building Materials Offers Buzon Pedestals

Buzon BC-Series Pedestal Overview

Buzon BC-Series pedestals provide endless design possibilities by using 360° independently rotating spacer tabs to line up non-dimensional materials perfectly. BC Series pedestals allow adjustments from 14 to 1030 mm by stacking couplers. Using multiple slope correctors, pitch can be corrected up to 15%.

BC-Series Slope Correction

Compensate for slope to drain designs or for locally uneven sub-bases. Slope corrector BC-PH5 is placed under the base of the pedestal. Consisting of 2 cylindrical parts, it compensates for 1 to 5% slope by simply rotating the devices. Compensate for up to 15% by coupling three slope correctors.

Slope Correction Diagram for Height Adjustable Screwjack Pedestals from Buzon - HDG Building Materials

BC-Series Applications

The Buzon BC-Series adjustable height pedestal provides unlimited solutions for your terrace design. With adjustable height, slope correction, and independent spacer tabs your creative architecture is limited only by your imagination.

Whether you are a construction professional, architect, landscape designer, specifier, or property developer this collection of video resources can help you:

  • Get acquainted with the Buzon pedestal product line and nomenclature
  • Learn how to correct for slope and resolve other technical issues
  • Build your competence around Buzon pedestal systems

If you are completely new to Buzon pedestals or wish to speed the learning of a lesser experienced colleague consider the Buzon Pedestals learning page or visit Master Distributor, Buzon USA West.

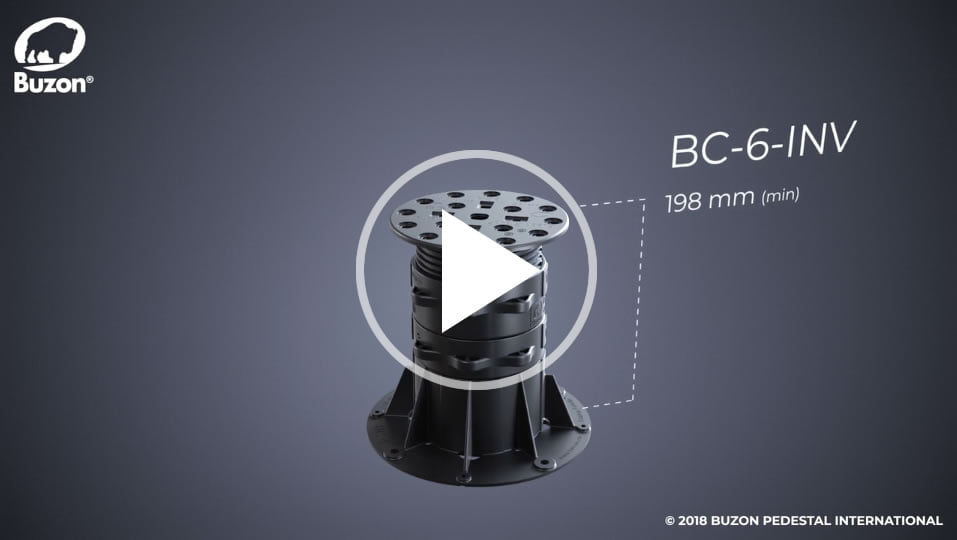

See All BC Series Videos

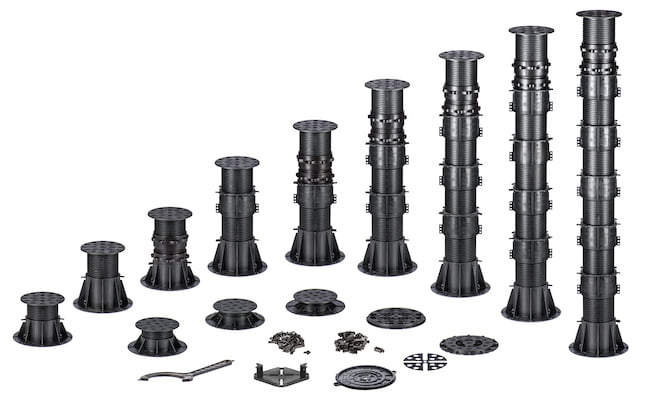

Buzon BC-Series Adjustable Height Screwjack Pedestal Family

BC-Series Buzon Pedestal Family

Buzon BC-Series Spacer Tabs

The BC Series adopts a new method of spacer tabs to separate pavers, inspiring creative architecture with unlimited possibilities. Independent tabs are fixed to the head of the pedestal and with the unique 360° rotation, the space between pavers will match perfectly.

Buzon BC-Series Pedestals
With Hardwood Decking

Wood Decking with Buzon Pedestals - HDG Building Materials
Buzon Pedestals and Massaranduba Hardwood Decking in Outdoor Dining Application
Buzon Pedestals with Ipe Hardwood Deck Tiles
Stone Wall with Ipe Deck Tiles over Buzon Pedestals - HDG Building Materials
Buzon Pedestals with Wood Decking 1 - HDG Building Materials
Buzon Pedestals with Wood Decking in Public Terrace - HDG Building Materials
Buzon Pedestals with Ipe Hardwood Deck Tiles - HDG Building Materials
Buzon Pedestals with Ipe Hardwood Tiles - HDG Building Materials
Buzon Pedestals with Wood Decking 2 - HDG Building Materials
Buzon Pedestals with Wood Decking 4 - HDG Building Materials
Buzon Pedestals with Wood Decking 5 - HDG Building Materials
Buzon Pedestals with Hardwood Decking - HDG Building Materials

Buzon BC-Series Pedestals With Stone Slabs and Structural Porcelain Pavers

Buzon Pedestal Spacer Tabs with Stone Slab Paving - HDG Building Materials
Canal Street Rooftop Pool Terrace 3 - Buzon Pedestals + Porcelain Pavers
BC Series Buzon Pedestals with Stone Tile - Marina Application 2 - HDG Building Materials

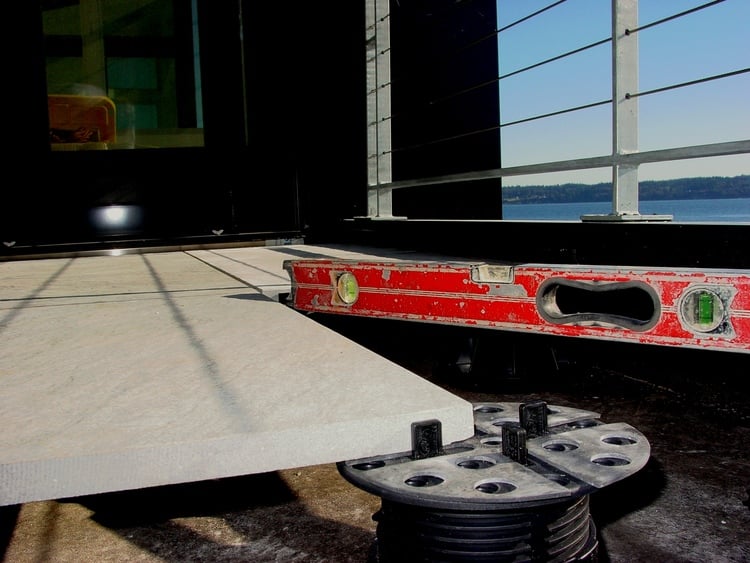

Buzon Pedestal with Stone Tile During Layout - HDG Building Materials
Buzon Pedestals with Stone Slabs - HDG Building Materials
BC Series Buzon Pedestals with Stone Tile - Marina Application 5BC Series Buzon Pedestals with Stone Tile - Marina Application 6 - HDG Building Materials
Outdoor Living Rooftop Pool Deck on Canal Street Built with Buzon Pedestals and Porcelain Pavers
Buzon Pedestals in Civic Plaza - HDG Building Materials
Buzon Pedestals with Concrete Pavers - HDG Building Materials
Buzon Pedestals with Tile Pavers - HDG Building Materials
Buzon Pedestals on HDG Grating Panels over Uneven Floor
Buzon Pedestals with Concrete Tiles in Restaurant Terrace - HDG Building Materials
