Permeable Driveway Pavers: Natural Stone, Grids, and Design-Driven Drainage Systems
Permeable driveways are often discussed as a single category of product, permeable pavers. In reality, permeable driveway pavers span a wide spectrum of materials, systems, and design intentions.
Some prioritize maximum infiltration. Others prioritize structure. Others prioritize architectural expression.
At HDG Building Materials, we see permeable driveway design as a system decision, not just a material choice.
That system can include engineered grids like Cell-Tek LSG-4 and Cell-Tek LSG-6, natural stone pavers, concrete pavers (closed or grassy), gravel systems, or hybrid assemblies that balance aesthetics and drainage performance.
A Practical Spectrum: From Fully Permeable to Design-Controlled Systems
| System Type | Permeability | Design Aesthetic | Typical Use Case |
|---|---|---|---|

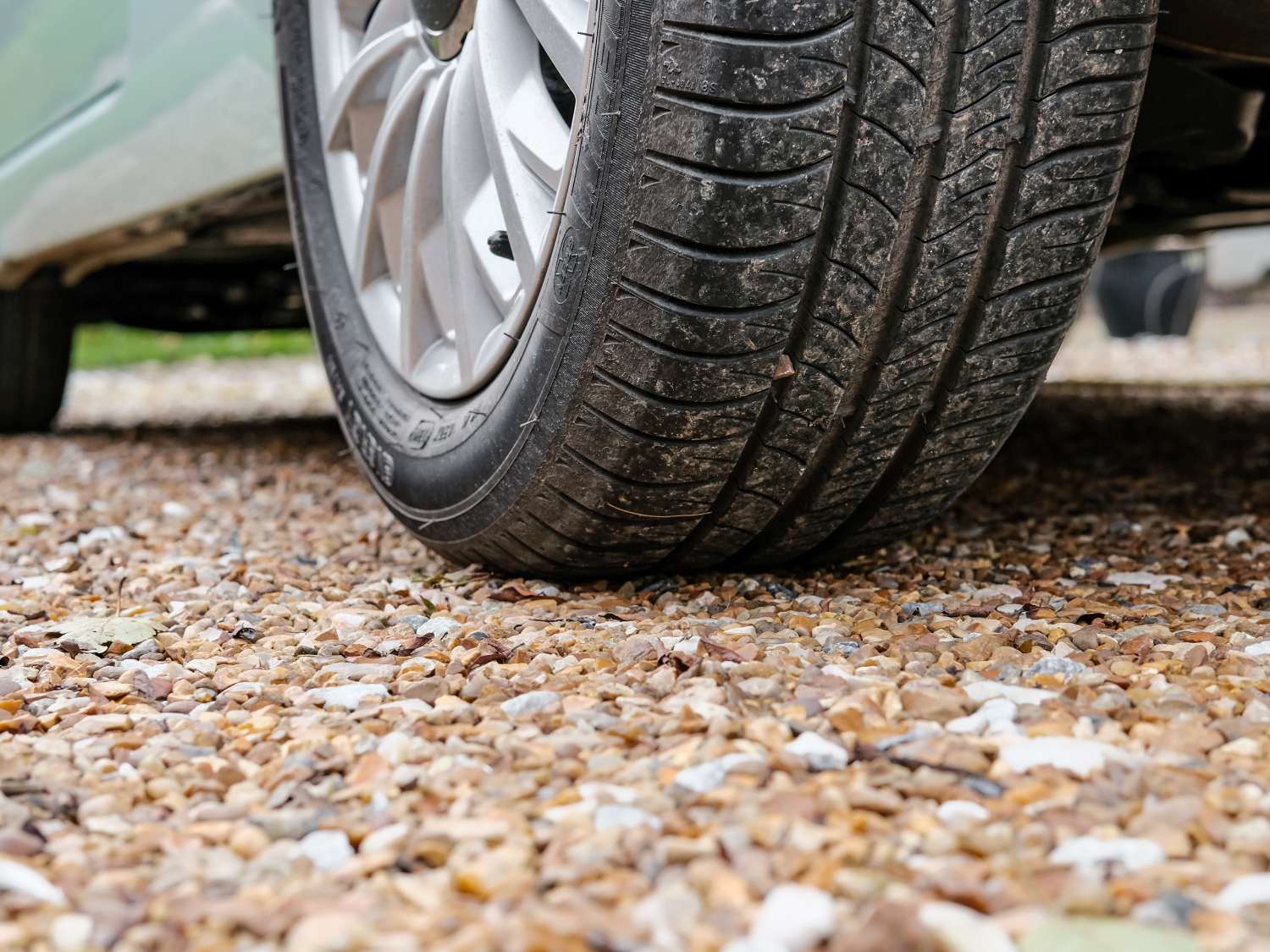

| Open Gravel / Grid Systems | High | Functional / utilitarian | Parking pads, low-traffic drives |
| Engineered Gravel Stabilization (LSG systems) | High | Clean but visible grid structure | Driveways, access lanes |

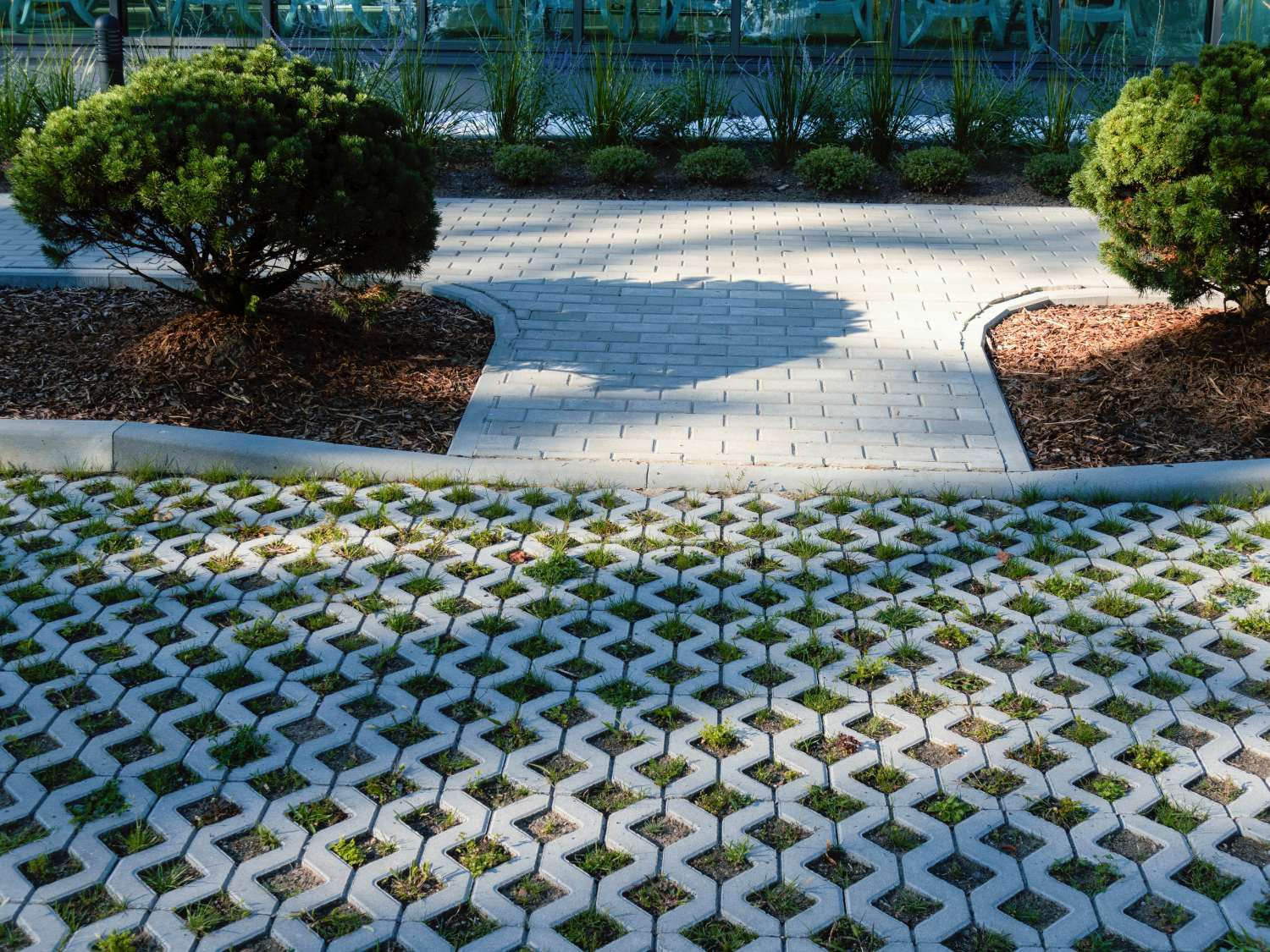

| Grassy Pavers | Medium–High | Natural, landscape-forward | Eco-driveways, estates |
| Natural Stone with Permeable Joints | Medium (controlled infiltration) | High-end architectural | Luxury residential, courtyards |

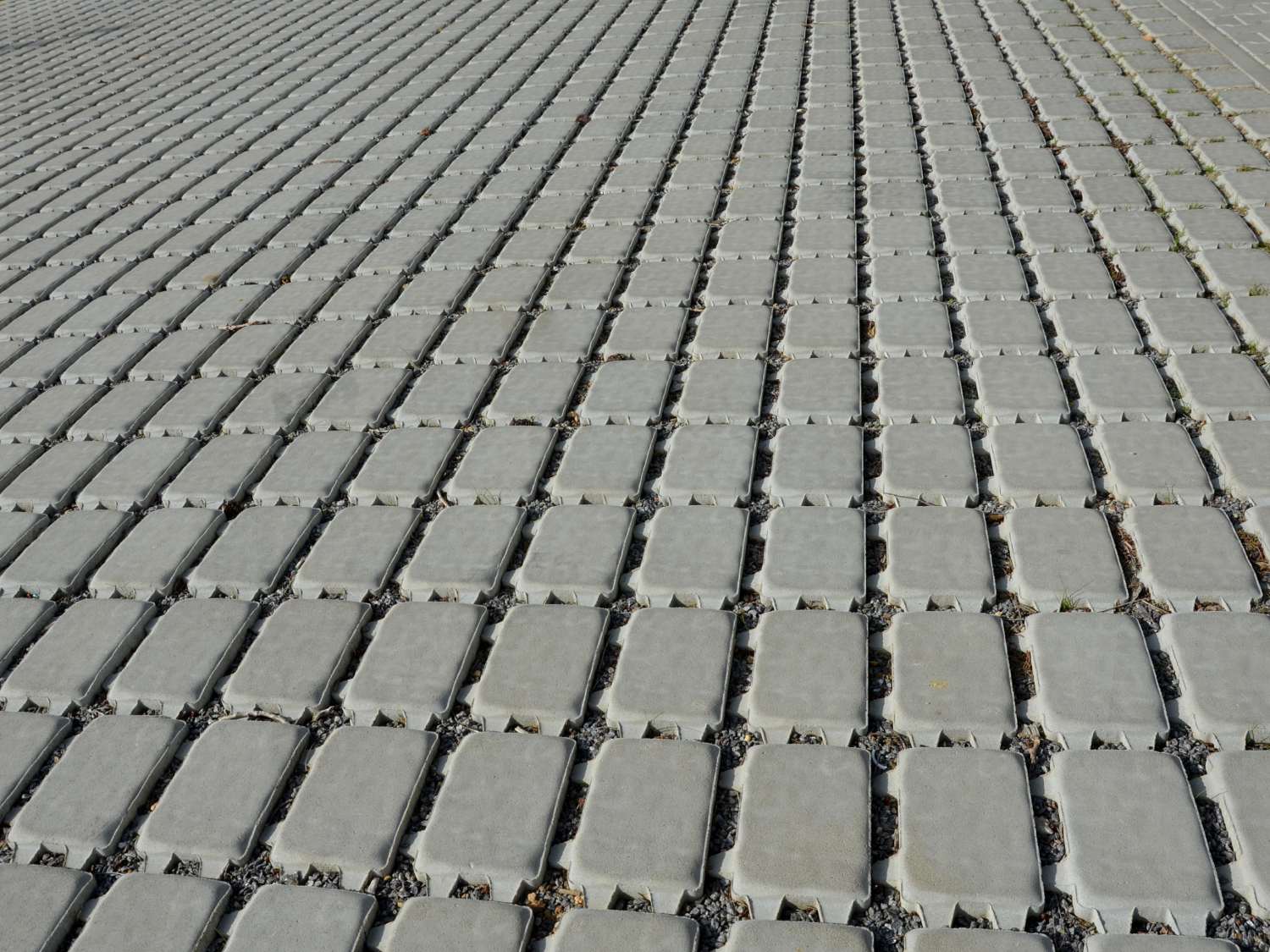

| Concrete Pavers with Spacing Systems | Low–Medium | Clean, modular | Modern residential / commercial |

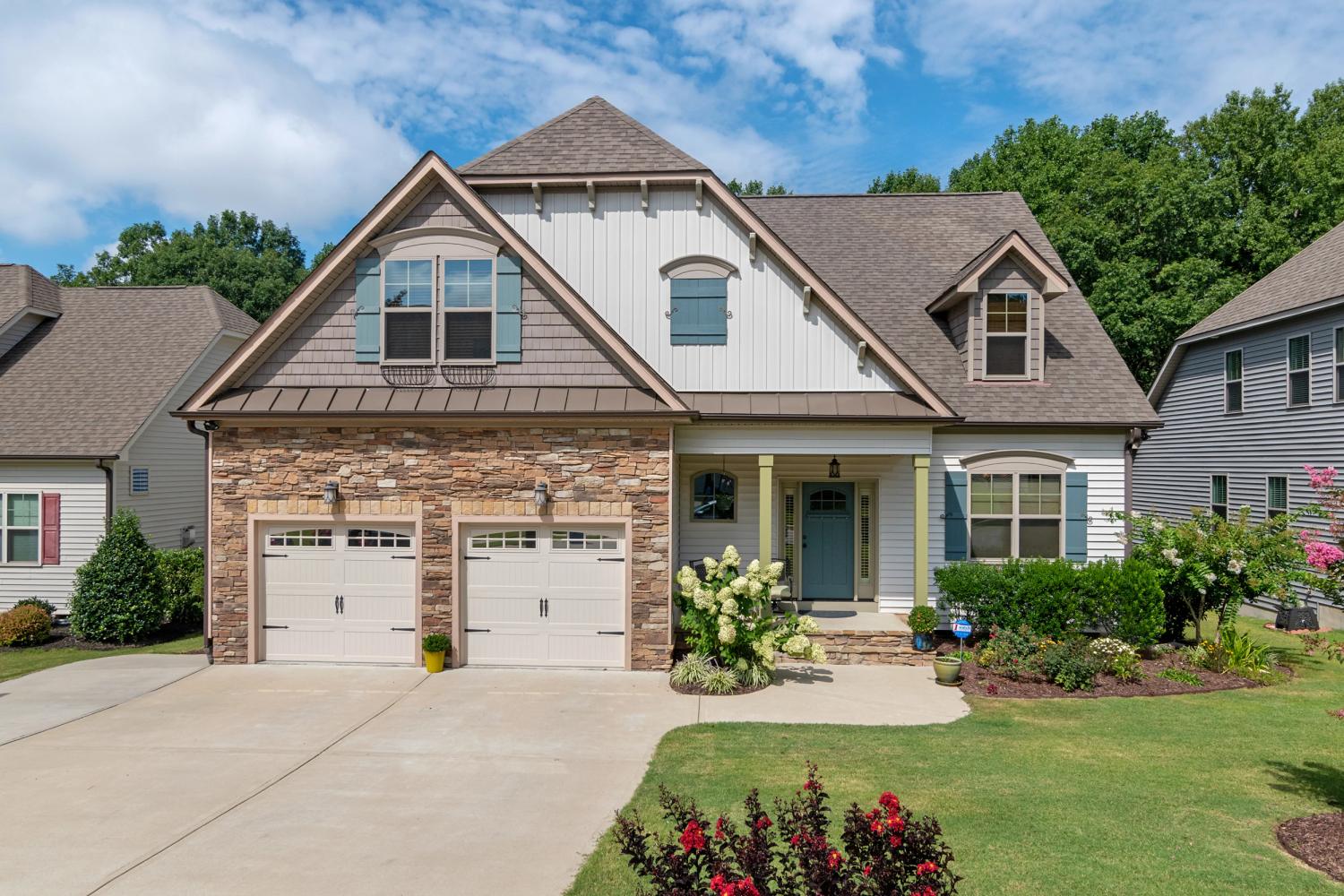

| Solid Concrete / Asphalt | Low (non-permeable) | Functional | Traditional driveways |

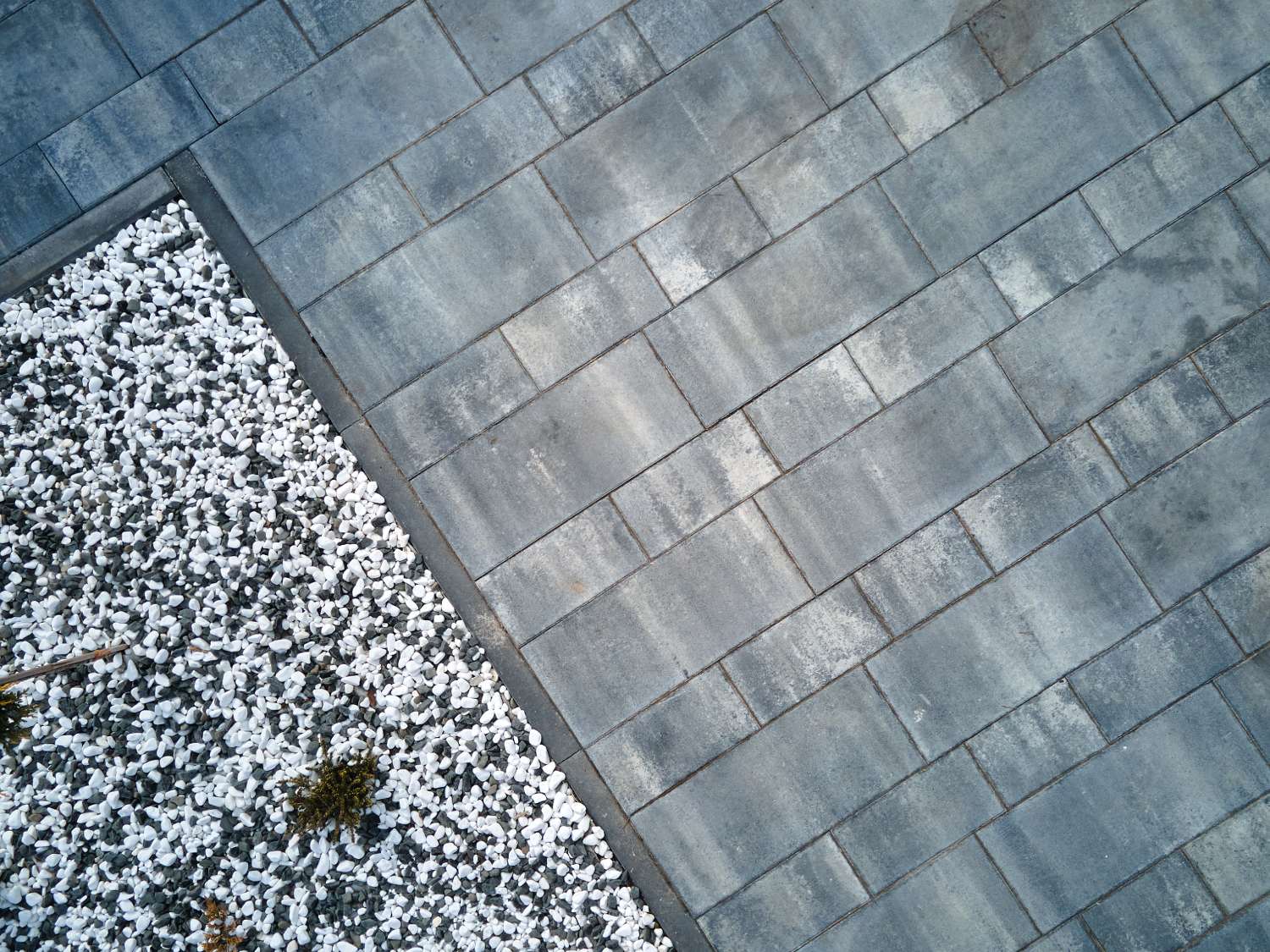

Natural Stone in Permeable Driveway Design
Natural stone occupies a unique position in this system. It is not inherently permeable. However, it becomes part of a permeable system through joint design, base construction, and installation strategy.

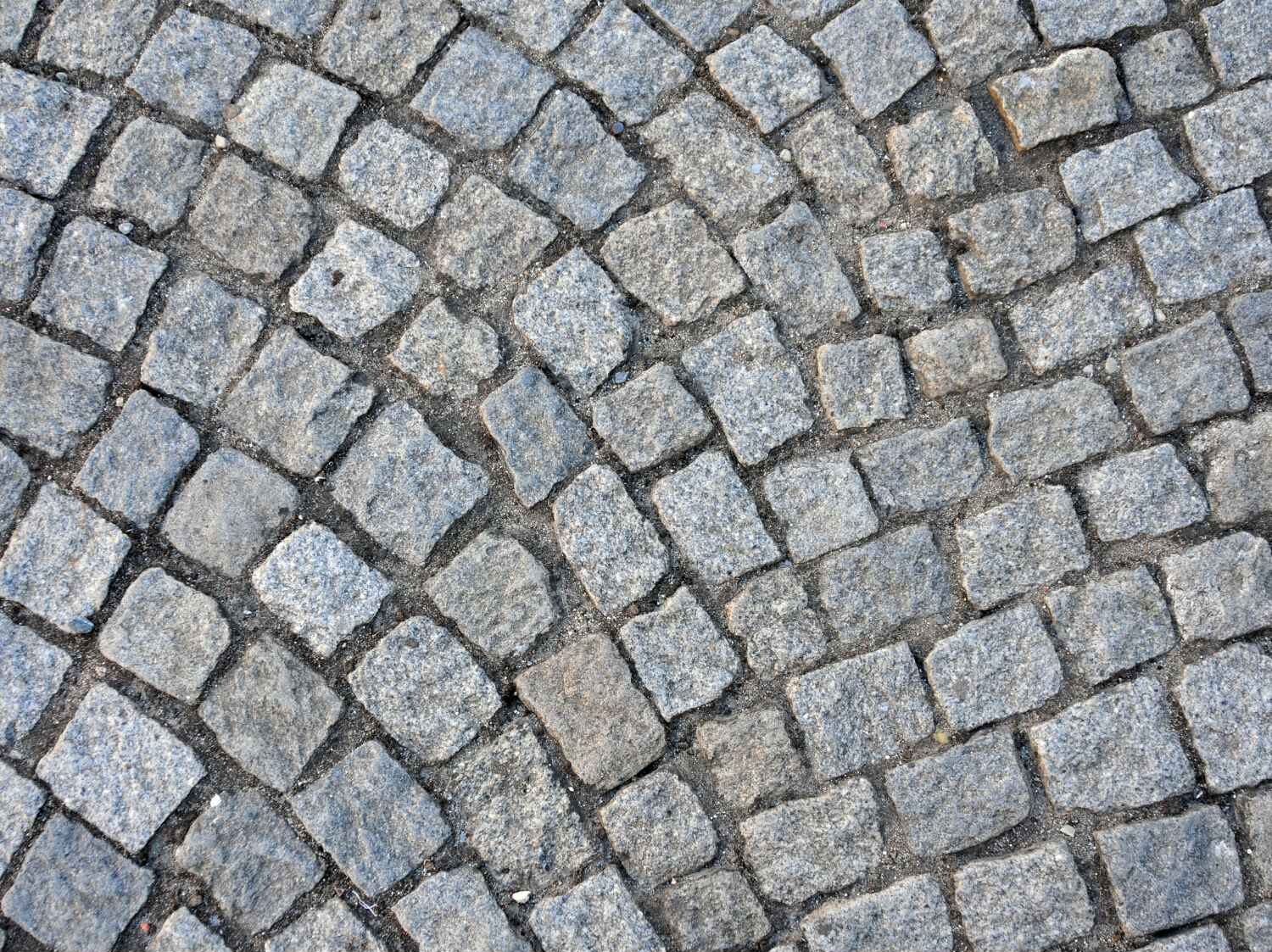

Reclaimed Cobblestones
Reclaimed cobblestones naturally create irregular spacing that allows infiltration through wider joints. These systems are extremely durable and visually rich.
Flagstone and Irregular Slabs
When dry-laid on a properly prepared permeable base, flagstone systems can be designed with sand-filled or aggregate joints that allow water movement.
Cut Stone with Controlled Joints
Granite, basalt, limestone, or travertine can be precision cut and installed with spacer systems to maintain consistent joint widths. This allows designers to control both permeability and visual rhythm.
Why Natural Stone Works in Permeable Systems
Eco-performance
Natural stone systems, when designed correctly, allow water to infiltrate through joints, helping reduce runoff and support groundwater recharge.
Longevity
Unlike manufactured surfaces, natural stone does not degrade in appearance over time. It weathers rather than wears out.
Design Value
Natural stone delivers a level of depth, texture, and permanence that concrete systems cannot replicate.
Key Insight: Permeability Is a System, Not a Surface
A driveway is not permeable because of the material alone. It is permeable because of:
- Joint width and material
- Base composition (aggregate vs concrete slab)
- Structural support system (grids, sand set, or reinforced base)
- Drainage strategy below the surface
For example:
- Gravel stabilized with LSG systems = structural permeability
- Natural stone with wide joints = controlled permeability with premium aesthetics
- Concrete pavers with spacing = partial infiltration with modular design control
Design Guidance: Choosing the Right System
Instead of asking “what is the most permeable option,” a better question is:
What balance of drainage, load-bearing capacity, and architectural expression is required for the site?
That is where HDG helps designers and builders specify:
- Natural stone formats (new or reclaimed)
- Joint spacing strategies
- Grid-supported systems like Cell-Tek LSG-4 and Cell-Tek LSG-6
Related Systems
For more detail on structural drainage and specialized assemblies, see our related pages on grating panels, drainage pavers, and engineered paving systems
Specifying the Right Permeable Driveway System
Permeable driveway design is about assembling a system that meets both engineering requirements and design intent.
Whether the project calls for:
- Structural gravel systems
- Grassy pavers
- Concrete modular systems
- Or natural stone with carefully engineered joints
HDG can help specify the right combination of materials, geometry, and base design.
